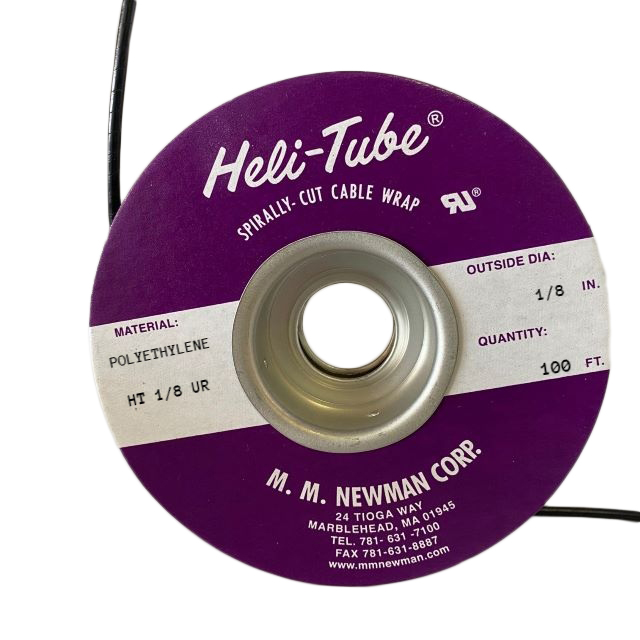

HT 1/8 UR

Active

MM Newman Corporation

SPIRAL WRAP 0.061" X 100' BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HT 1/8 UR

Active

MM Newman Corporation

SPIRAL WRAP 0.061" X 100' BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HT 1/8 UR	HT 1/8 Series

Abrasion Protection	Abrasion Resistant	Abrasion Resistant
Color	Black	Natural, Black, White
Diameter - Inside, Expanded [diameter]	12.7 mm	12.7 mm
Diameter - Inside, Expanded [diameter]	0.5 in	0.5 in
Diameter - Inside, Non-Expanded [diameter]	1.55 mm	1.55 - 2.41 mm
Diameter - Inside, Non-Expanded [diameter]	0.061 in	0.061 - 0.095 in
Diameter - Outside, Non-Expanded [diameter]	3.18 mm	3.18 mm
Diameter - Outside, Non-Expanded [diameter]	0.125 in	0.125 in
Environment Protection	-	UV Resistant
Features	Solvent Resistant, Chemical Resistant	Solvent Resistant, Chemical Resistant, Self Extinguishing
Heat Protection	-	Fire Resistant
Length	100 ft	100 ft
Length	30.48 m	30.48 m
Material	Polyethylene (PE)	Polytetrafluoroethylene (PTFE), Polyethylene (PE), Nylon
Material Flammability Rating	-	UL94 V-0, UL VW-1, UL94 V-2, UL1441
Operating Temperature [Max]	88 °C	80 - 260 ░C
Operating Temperature [Min]	-60 °C	-268 - -20 °C
Type	Spiral Wrap	Spiral Wrap
Type Attributes	Harness	Harness
Wall Thickness	0.032 in	0.015 - 0.032 in
Wall Thickness	0.81 mm	0.38 - 0.81 mm
Wall Thickness	-	0.02 - 0.03 in
Wall Thickness	-	0.51 - 0.76 mm

HT 1/8 Series

SPIRAL WRAP 0.085" X 100' NAT

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material	Features	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Type	Wall Thickness [custom]	Wall Thickness [custom]	Material Flammability Rating	Type Attributes	Length	Length	Color	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Environment Protection	Heat Protection	Abrasion Protection	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Wall Thickness	Wall Thickness
MM Newman Corporation HT 1/8 T1	260 ░C	-268 °C	Polytetrafluoroethylene (PTFE)	Chemical Resistant, Solvent Resistant	3.18 mm	0.125 in	Spiral Wrap	0.03 in	0.76 mm	UL VW-1, UL94 V-0	Harness	100 ft	30.48 m	Natural	0.085 in	2.16 mm	UV Resistant	Fire Resistant	Abrasion Resistant	12.7 mm	0.5 in
MM Newman Corporation HT 1/8 T2	260 ░C	-268 °C	Polytetrafluoroethylene (PTFE)	Chemical Resistant, Solvent Resistant	3.18 mm	0.125 in	Spiral Wrap	0.02 in	0.51 mm	UL VW-1, UL94 V-0	Harness	100 ft	30.48 m	Natural	0.065 in	1.65 mm	UV Resistant	Fire Resistant	Abrasion Resistant	12.7 mm	0.5 in
MM Newman Corporation HT 1/8 UR	88 °C	-60 °C	Polyethylene (PE)	Chemical Resistant, Solvent Resistant	3.18 mm	0.125 in	Spiral Wrap				Harness	100 ft	30.48 m	Black	0.061 in	1.55 mm			Abrasion Resistant	12.7 mm	0.5 in	0.032 in	0.81 mm
MM Newman Corporation HT 1/8 R	80 C	-20 C	Polyethylene (PE)	Chemical Resistant, Solvent Resistant	3.18 mm	0.125 in	Spiral Wrap			UL94 V-2, UL1441	Harness	100 ft	30.48 m	White	0.061 in	1.55 mm		Fire Resistant	Abrasion Resistant	12.7 mm	0.5 in	0.032 in	0.81 mm
MM Newman Corporation HT 1/8 C	88 °C	-60 °C	Polyethylene (PE)	Chemical Resistant, Solvent Resistant	3.18 mm	0.125 in	Spiral Wrap				Harness	100 ft	30.48 m	Natural	0.061 in	1.55 mm			Abrasion Resistant	12.7 mm	0.5 in	0.032 in	0.81 mm
MM Newman Corporation HT 1/8 N	121 °C	-40 °C	Nylon	Chemical Resistant, Self Extinguishing, Solvent Resistant	3.18 mm	0.125 in	Spiral Wrap				Harness	100 ft	30.48 m	Natural	0.095 in	2.41 mm			Abrasion Resistant	12.7 mm	0.5 in	0.015 in	0.38 mm
MM Newman Corporation HT 1/8 R-B	80 C	-20 C	Polyethylene (PE)	Chemical Resistant, Solvent Resistant	3.18 mm	0.125 in	Spiral Wrap			UL94 V-2, UL1441	Harness	100 ft	30.48 m	Black	0.061 in	1.55 mm		Fire Resistant	Abrasion Resistant	12.7 mm	0.5 in	0.032 in	0.81 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 38.14
		10	$ 27.92

Description

General part information

HT 1/8 Series

Spiral Wrap 0.125" (3.18mm) X 100' (30.48m) Black
