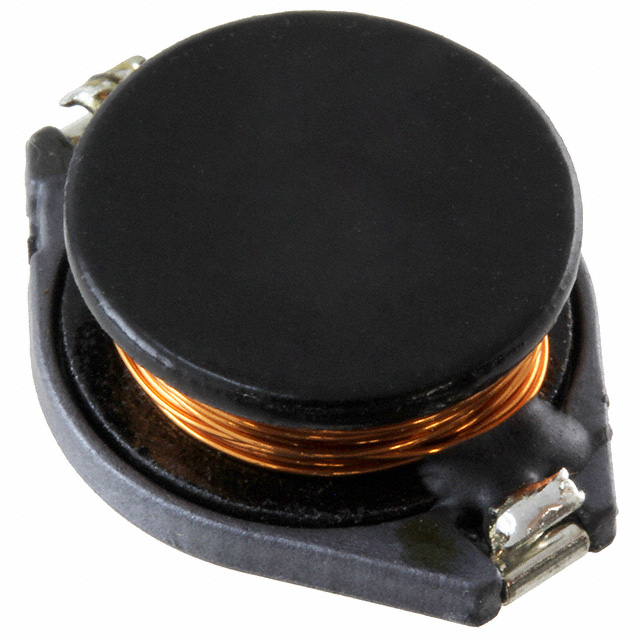

LMXN1915M102CTAS
ObsoleteKYOCERA AVX
FIXED IND 1MH 1.8 OHM SMD
LMXN1915M102CTAS
ObsoleteKYOCERA AVX
FIXED IND 1MH 1.8 OHM SMD
Description
General part information
LMXN1915M102CTAS
1 mH Unshielded Drum Core, Wirewound Inductor 1.8Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | LMXN1915M102CTAS |
|---|---|
| Current - Saturation (Isat) | 1 A |
| DC Resistance (DCR) (Max) | 1.8 Ohm |
| Height - Seated (Max) | 0.28 in |
| Inductance | 1 mH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.73 in |
| Size / Dimension Width | 0.6 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
