Description
General part information

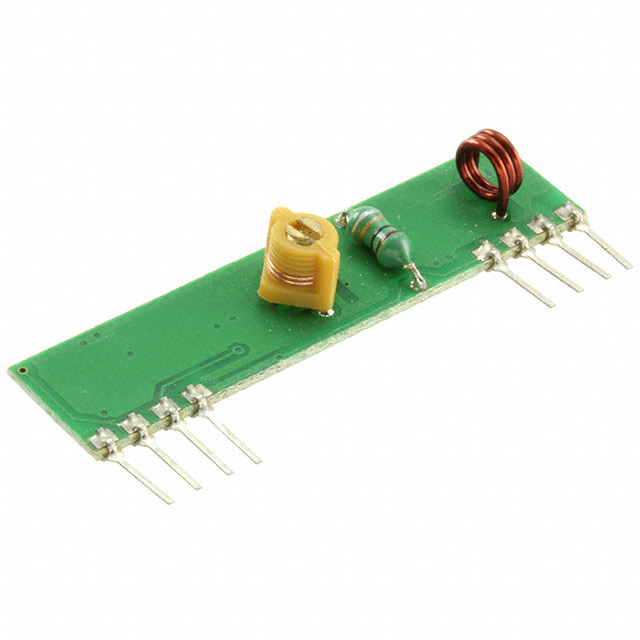

WRL-10532
- RF Receiver ASK 433.42MHz ~ 434.42MHz -110dBm 4.8kbps PCB, Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | WRL-10532 |
|---|---|
| Antenna Connector | Through Hole, PCB |
| Applications | General Purpose |
| Data Rate (Max) | 4.8 kbps |
| Frequency (Max) | 434.42 MHz |
| Frequency (Min) | 433.42 MHz |
| Modulation or Protocol | ASK |
| Mounting Type | Through Hole |
| Package / Case | 8-SIP Module |
| Sensitivity | -110 dBm |
| Voltage - Supply (Maximum) | 5.1 V |
| Voltage - Supply (Minimum) | 4.9 V |
