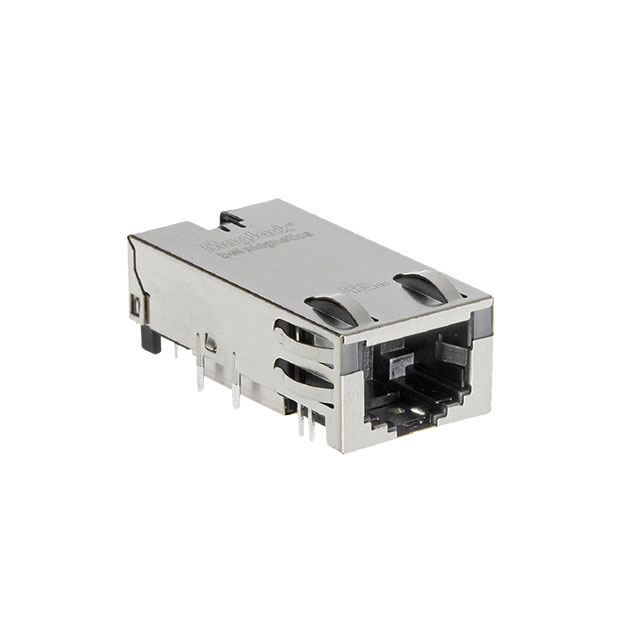

2250128-1
ActiveTRP Connector B.V.
CONN JACK 1PORT 10G BASE-T PCB
Deep-Dive with AI
Search across all available documentation for this part.
2250128-1
ActiveTRP Connector B.V.
CONN JACK 1PORT 10G BASE-T PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2250128-1 |
|---|---|
| Applications | 10G Base-T |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Features | Board Guide |
| Height Above Board | 11.68 mm |
| Height Above Board | 0.46 in |
| Housing Material | Polyamide (PA), Nylon |
| LED Color | Yellow, Green - Green |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Orientation | 90 ° |
| Shield Material | Brass |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Down |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 240 | $ 7.12 | |
| 480 | $ 6.68 | |||
| 1200 | $ 5.91 | |||
| 1680 | $ 5.74 | |||
Description
General part information
2250128 Series
1 Port RJ45Through Hole 10G Base-T
Documents
Technical documentation and resources
No documents available
