Description
General part information

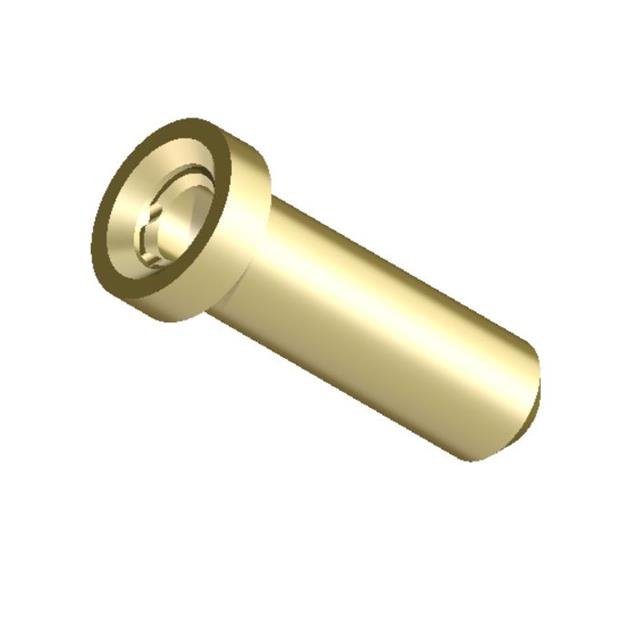

01412-13-1110
Pin Receptacle Connector No Tail Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 01412-13-1110 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Ąin |
| Contact Material | Beryllium Copper |
| Flange Diameter | 0.055 in |
| Insertion Force | 1 N |
| Length - Overall | 0.136 in |
| Pin Hole Diameter | 0.038 in |
| Socket Depth | 0.124 in |
| Tail Diameter | 0.038 in |
| Tail Type | No Tail |
| Termination | Solder |
