Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 26.52 | |
General part information

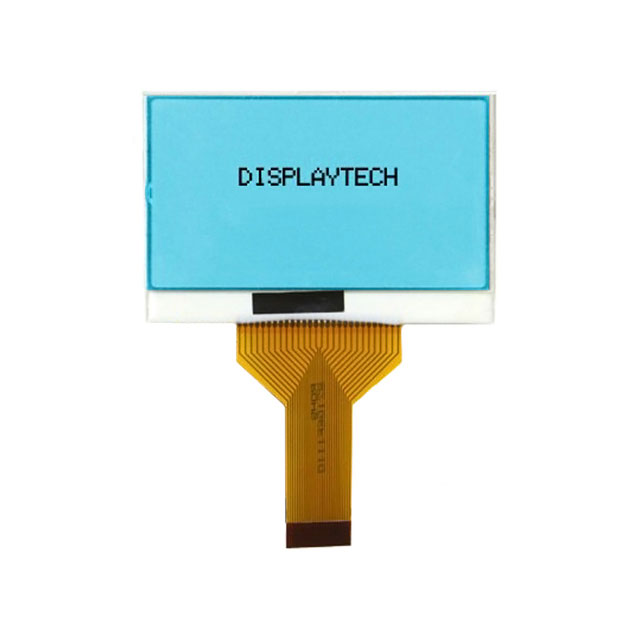

Graphic LCD Display Module Transflective Red, Green, Blue (RGB) FSTN - Film Super-Twisted Nematic 240 x 128
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 128240C FC BW-RGB | 128240 Series |
|---|---|---|
| Backlight | LED, Red, Green, Blue | LED, Red, Green, Blue, LED - White |
| Display Mode | Transflective | Transflective |
| Display Type | FSTN - Film Super-Twisted Nematic | FSTN - Film Super-Twisted Nematic |
| Dot Pixels [x] | 240 pixels | 240 pixels |
| Dot Pixels [y] | 128 | 128 |
| Dot Size [y] | 0.22 mm | 0.22 - 0.32 mm |
| Dot Size [z] | 0.22 mm | 0.22 - 0.32 mm |
| Graphics Color | Green, Red, Blue | Green, Red, Blue |
| Viewing Area | - | 53 mm |
| Viewing Area [x] | 70 mm | 70 mm |
| Viewing Area [y] | 35 mm | 35 - 92 mm |
DISPLAY LCD 240X120 TRANSFL
| Part | Dot Pixels [x] | Dot Pixels [y] | Graphics Color | Viewing Area [x] | Viewing Area [y] | Backlight | Display Mode | Display Type | Dot Size [z] | Dot Size [y] | Viewing Area [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|
Displaytech 128240C FC BW-RGB | 240 pixels | 128 | Blue, Green, Red | 70 mm | 35 mm | Blue, Green, LED, Red | Transflective | FSTN - Film Super-Twisted Nematic | 0.22 mm | 0.22 mm | |
Displaytech 128240D FC BW-3 | 240 pixels | 128 | 92 mm | LED - White | Transflective | FSTN - Film Super-Twisted Nematic | 0.32 mm | 0.32 mm | 53 mm | ||
Displaytech 128240C FC BW-3 | 240 pixels | 128 | 70 mm | 35 mm | LED - White | Transflective | FSTN - Film Super-Twisted Nematic | 0.22 mm | 0.22 mm |
