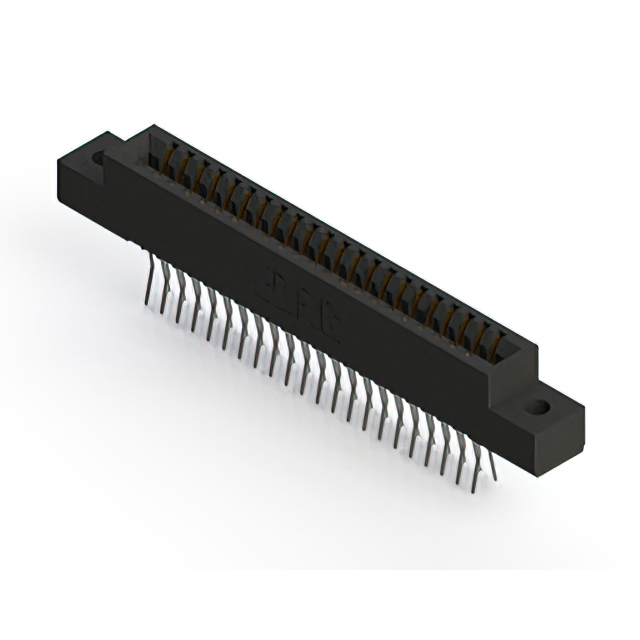

391-044-560-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 44POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
391-044-560-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 44POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 391-044-560-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 44 |
| Number of Positions/Bay/Row [custom] | 22 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
391-044 Series
| Part | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Material - Insulation | Termination | Color | Read Out | Termination Rows | Number of Positions/Bay/Row [custom] | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Number of Rows | Contact Finish | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Type | Gender | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Solder | Black | Single | 1 | 44 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | Gold | Through Hole | -40 °C | 105 ░C | 44 | Semi Bellows | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | |
EDAC Inc. | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Polyester Thermoplastic | Solder | Black | Dual | 2 | 22 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | Gold | Through Hole | -40 °C | 105 ░C | 44 | Semi Bellows | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Card Extender |
EDAC Inc. | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Solder | Black | Dual | 2 | 22 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | Gold | Through Hole | -40 °C | 105 ░C | 44 | Semi Bellows | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | |
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Solder | Black | Dual | 2 | 22 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | Gold | Through Hole | -40 °C | 105 ░C | 44 | Semi Bellows | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Card Extender | ||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Solder | Black | Single | 1 | 44 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | Gold | Through Hole | -40 °C | 105 ░C | 44 | Semi Bellows | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Solder | Black | Dual | 2 | 22 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | Gold | Board Edge Straddle Mount | -40 °C | 105 ░C | 44 | Semi Bellows | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Card Extender |
EDAC Inc. | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Polyester Thermoplastic | Solder | Black | Single | 1 | 44 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | Gold | Through Hole | -40 °C | 105 ░C | 44 | Semi Bellows | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | |
EDAC Inc. | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Polyester Thermoplastic | Solder | Black | Dual | 2 | 22 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | Gold | Through Hole | -40 °C | 105 ░C | 44 | Semi Bellows | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | |
EDAC Inc. | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Solder Eyelet(s) | Black | Dual | 2 | 22 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | Gold | Through Hole | -40 °C | 105 ░C | 44 | Semi Bellows | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Card Extender |
EDAC Inc. | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Solder | Black | Dual | 2 | 22 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | Gold | Board Edge Straddle Mount | -40 °C | 105 ░C | 44 | Semi Bellows | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
391-044 Series
44 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
