1-794065-1

Active

TE Connectivity AMP Connectors

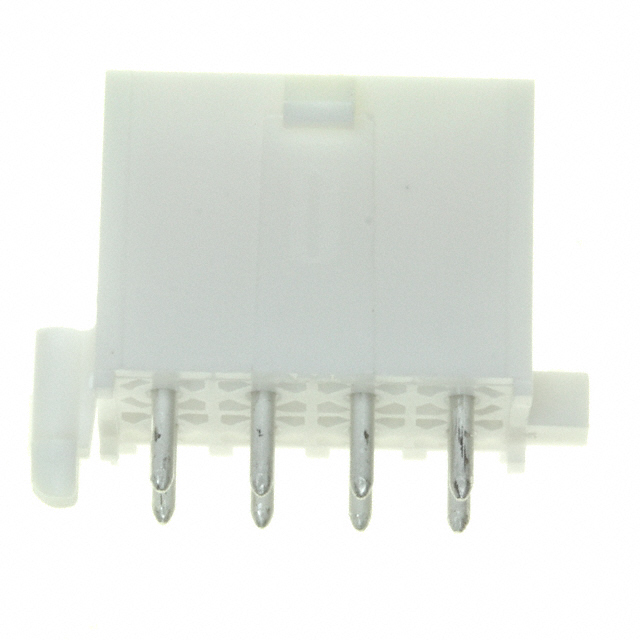

CONN HEADER VERT 8POS 4.14MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-794065-1

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 8POS 4.14MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-794065-1	794065 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Gold	Tin-Lead, Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 - 150 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 - 3.81 Ám
Contact Finish Thickness - Post	150 Áin	150 Áin
Contact Finish Thickness - Post	3.81 Ám	3.81 Ám
Contact Length - Post	4.45 mm	4.45 mm
Contact Length - Post	0.175 in	0.175 in
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	White	White
Insulation Height	13.5 mm	13.5 mm
Insulation Height	0.531 in	0.531 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	8	8
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	85 - 105 °C
Operating Temperature [Min]	-20 C	-20 C
Pitch - Mating	4.14 mm	4.14 mm
Pitch - Mating	0.163 in	0.163 in
Row Spacing - Mating	4.14 mm	4.14 mm
Row Spacing - Mating	0.163 in	0.163 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

794065 Series

CONN HEADER VERT 8POS 4.14MM

Part	Insulation Height	Insulation Height	Contact Type	Shrouding	Insulation Material	Pitch - Mating	Pitch - Mating	Number of Rows	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Style	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Contact Finish - Mating	Fastening Type	Contact Material	Contact Finish - Post	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Termination	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Insulation Color	Voltage Rating	Number of Positions
TE Connectivity AMP Connectors 794065-1	13.5 mm	0.531 in	Male Pin	Shrouded - 4 Wall	Nylon, Polyamide (PA)	4.14 mm	0.163 in	2	Through Hole	85 °C	-20 C	Board to Cable/Wire	General Purpose	150 Áin	3.81 Ám	All	Tin-Lead	Locking Ramp	Brass	Tin-Lead	Header	150 Áin	3.81 Ám	Varies by Wire Gauge	Solder	4.14 mm	0.163 in	Circular	UL94 V-0	4.45 mm	0.175 in	White	600 VAC	8
TE Connectivity AMP Connectors 794065-2	13.5 mm	0.531 in	Male Pin	Shrouded - 4 Wall	Nylon, Polyamide (PA)	4.14 mm	0.163 in	2	Through Hole	105 ░C	-20 C	Board to Cable/Wire	General Purpose	150 Áin	3.81 Ám	All	Gold	Locking Ramp	Brass	Tin-Lead	Header	30 Áin	0.76 Ám	Varies by Wire Gauge	Solder	4.14 mm	0.163 in	Circular	UL94 V-0	4.45 mm	0.175 in	White	600 VAC	8
TE Connectivity AMP Connectors 1-794065-1	13.5 mm	0.531 in	Male Pin	Shrouded - 4 Wall	Nylon, Polyamide (PA)	4.14 mm	0.163 in	2	Through Hole	105 ░C	-20 C	Board to Cable/Wire	General Purpose	150 Áin	3.81 Ám	All	Gold	Locking Ramp	Brass	Tin	Header	30 Áin	0.76 Ám	Varies by Wire Gauge	Solder	4.14 mm	0.163 in	Circular	UL94 V-0	4.45 mm	0.175 in	White	600 VAC	8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.14
		10	$ 1.91
		200	$ 1.72

Description

General part information

794065 Series

Connector Header Through Hole 8 position 0.163" (4.14mm)
