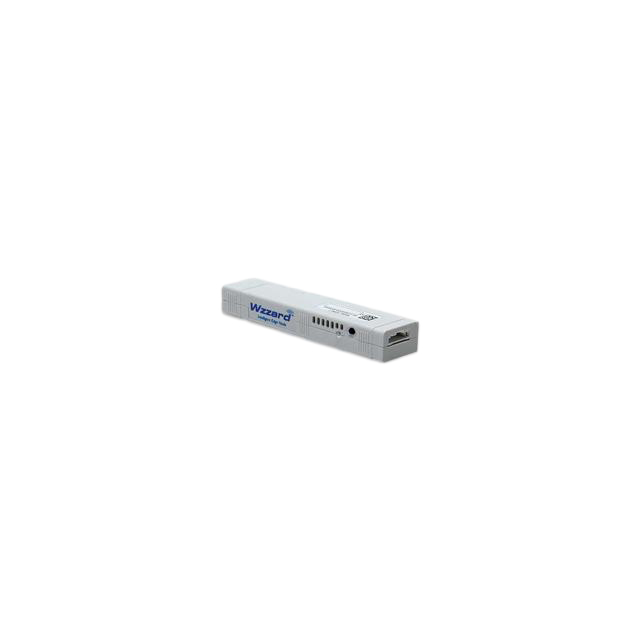

BB-WCD1H3001HP100
ObsoleteAdvantech Corporation
WZZARD MESH COM 3AI NODE, 100MS
BB-WCD1H3001HP100
ObsoleteAdvantech Corporation
WZZARD MESH COM 3AI NODE, 100MS
Description
General part information
BB-WCD1H3001HP100
RF Sensor 2.4GHz ~ 2.48GHz 802.15.4, DSSS 250kbps
Technical Specifications
Parameters and characteristics for this part
| Specification | BB-WCD1H3001HP100 |
|---|---|
| Applications | Monitors |
| Data Rate (Max) | 250 kBaud |
| Features | Antenna Included |
| Frequency (Max) | 2.48 GHz |
| Frequency (Min) | 2.4 GHz |
| Function | Sensor |
| Modulation or Protocol | DSSS, 802.15.4 |
| Power - Output | 8 dBm |
| Sensitivity | -95 dBm |
| Voltage - Supply (Maximum) | 48 VDC |
| Voltage - Supply (Minimum) | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
