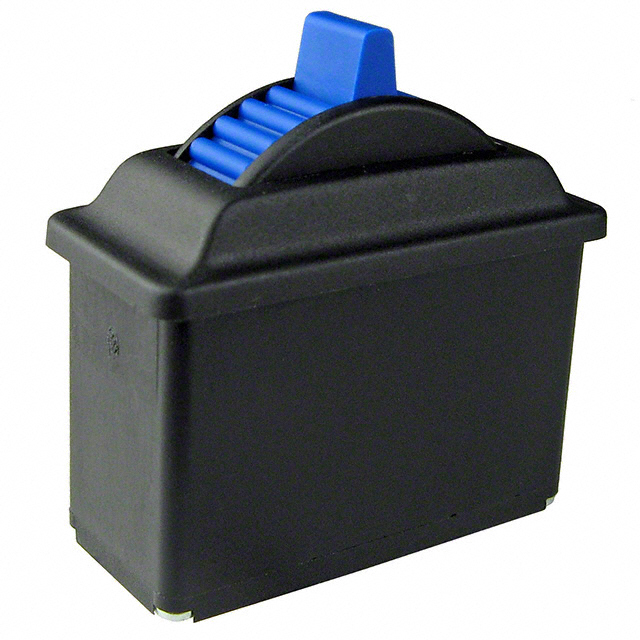

HTW-00-BLUE
ObsoleteAPEM
SWITCH THUMBWHEEL HALL EFFECT
Deep-Dive with AI
Search across all available documentation for this part.
HTW-00-BLUE
ObsoleteAPEM
SWITCH THUMBWHEEL HALL EFFECT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HTW-00-BLUE |
|---|---|
| Actuator Type | Thumbwheel |
| Features | Blue Actuator |
| Mechanical Life | 5000000 Cycles |
| Operating Force | 80 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Analog (Hall Effect) |
| Panel Cutout Dimensions [x] | 36.45 mm |
| Panel Cutout Dimensions [y] | 16.05 mm |
| Switch Function | 2-Way Directional |
| Termination Style | Wire Leads |
| Type | Thumbwheel, 1 - Axis |
| Voltage - Supply | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
HTW-00-BLUE
Thumbwheel, 1 - Axis Analog (Hall Effect) Output
Documents
Technical documentation and resources
No documents available
