OVS5MGBCR4A

OVS5MABCR4A

Active
TT Electronics/BI

LED OVS5MXBCR4X AMBER 624NM SMD

Find alt
OVS5MGBCR4A

OVS5MABCR4A

Active
TT Electronics/BI

LED OVS5MXBCR4X AMBER 624NM SMD

Find alt

Description

General part information

OVS5MABCR4A

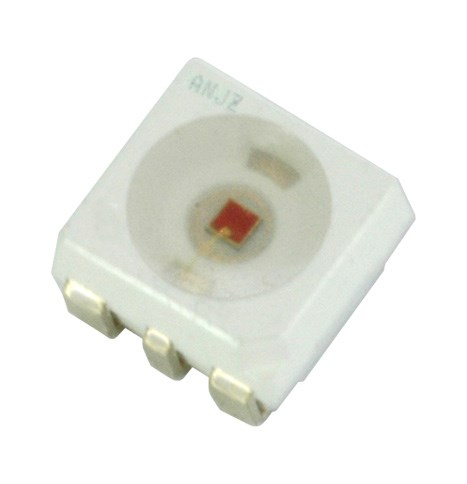

LED Lighting Color OVS5MxBCR4x Amber 624nm 6-SMD, No Lead

Technical Specifications

Parameters and characteristics for this part

SpecificationOVS5MABCR4A
ColorAmber
Current - Max200 mA
Current - Test140 mA
Height - Seated (Max)0.075 in
Lumens/Watt66 lm/W
Luminous Flux (Typical)24 lm
Mounting TypeSurface Mount
Package / CaseNo Lead, 6-SMD
Package NameSMD
Size / Dimension Length0.126 in
Size / Dimension Width0.118 in
Temperature - Test25 °C
Thermal Resistance of Package60 °C/W
Viewing Angle115 °
Voltage - Forward (Vf) (Typ)2.3 V
Wavelength624 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
