2303088-2
ActiveTE Connectivity AMP Connectors
32POS,NANOMQS,REC HSG,UNSLD,COD A,FFC
2303088-2
ActiveTE Connectivity AMP Connectors
32POS,NANOMQS,REC HSG,UNSLD,COD A,FFC
Description
General part information
2303088-2

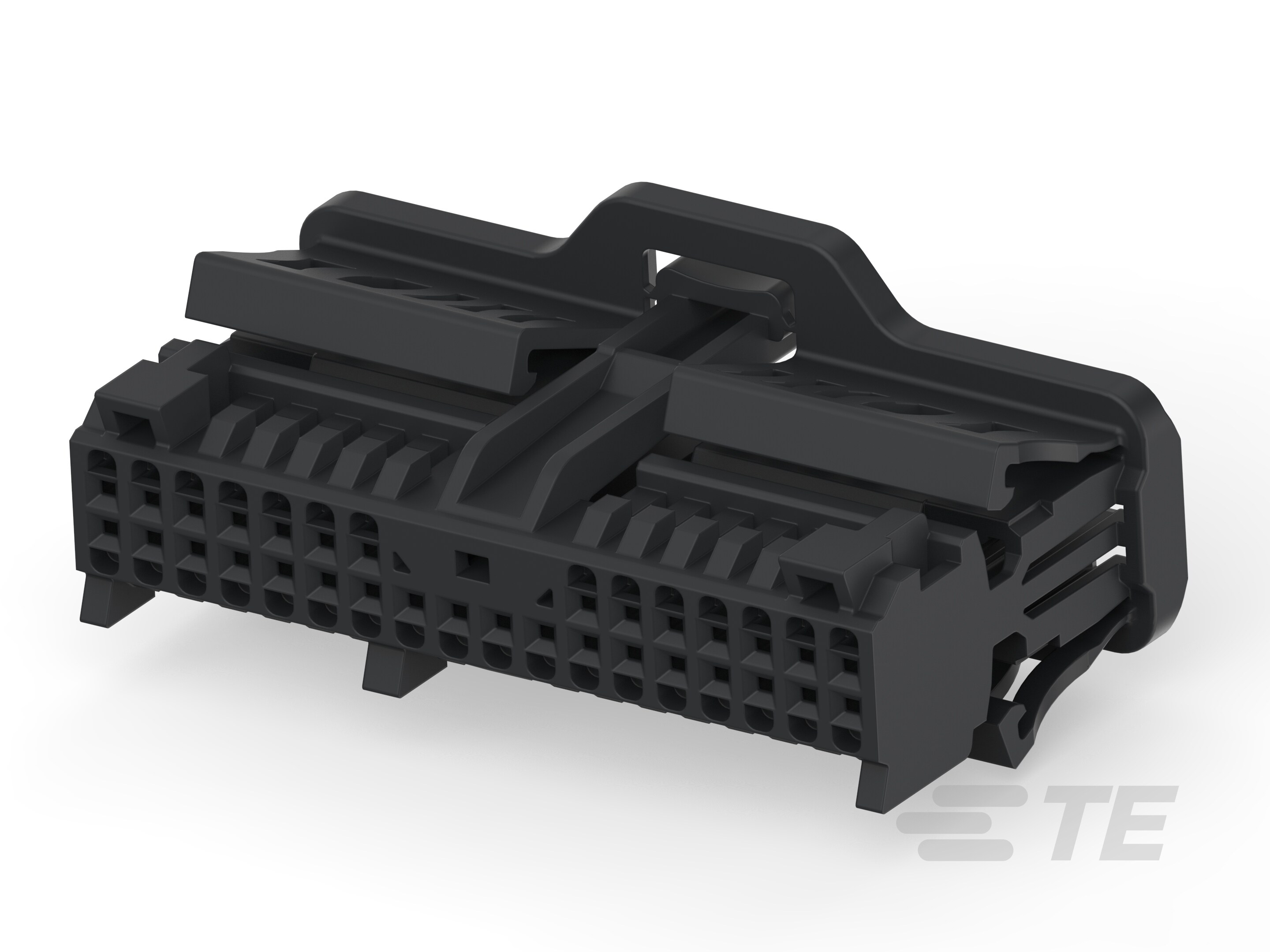

32 Position Housing, Housing for Female Terminals, Wire-to-Board, 1.8 mm [.071 in] Centerline, Black, Wire & Cable, Signal, Cable Mount (Free-Hanging)
Technical Specifications
Parameters and characteristics for this part
| Specification | 2303088-2 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 32 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.071 in |
| Row Spacing | 0.059 in |
