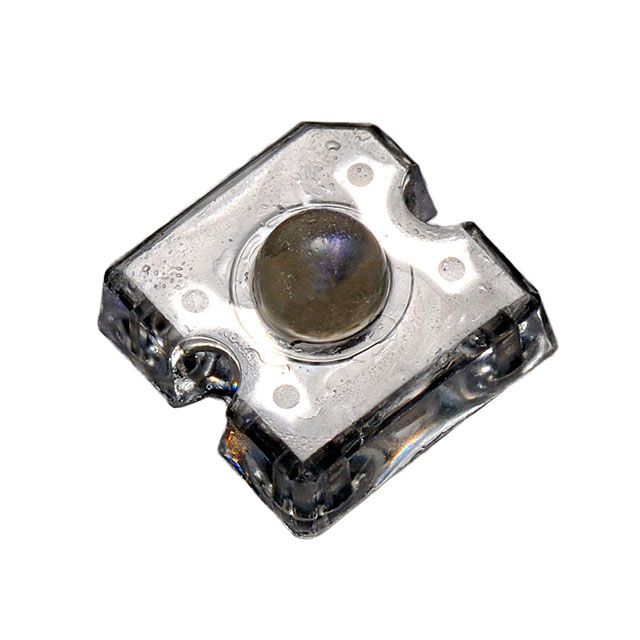

Specification	CP41A-RDS-CL0N0JJ4

Color	Red
Configuration	Standard
Current - Test	70 mA
Height (Max)	6.8 mm
Lens Diameter	3 mm
Lens Style	Round, Domed Top
Lens Transparency	Clear
Millicandela Rating	6565 mcd
Mounting Type	Through Hole
Package Length	5.08 mm
Package Name	P4, 4-EDIP
Package Width	5.08 mm
Size / Dimension Length	7.6 mm
Size / Dimension Width	7.6 mm
Viewing Angle	40 °
Voltage - Forward (Vf) (Typ)	2.3 V
Wavelength - Dominant	625 nm

CP41A Series

Part	Current - Max	Mounting Type	Current - Test	Color	Wavelength (Minimum)	Wavelength (Maximum)	Wavelength	Wavelength (Nominal)	Lumens/Watt	Package Name	Voltage - Forward (Vf) (Typ)	Package Width	Package Length	Height - Seated (Max)	Temperature - Test	Viewing Angle	Luminous Flux	Luminous Flux (Maximum)	Luminous Flux (Minimum)	Size / Dimension Length	Size / Dimension Width	Height (Max)	Lens Style	Configuration	Millicandela Rating	Wavelength - Dominant	Lens Diameter	Lens Transparency
CreeLED, Inc. CP41A-PFS-CM0P0JJ4	70 mA	Through Hole	70 mA	Orange	612 nm	618 nm	615 nm	615 nm	56 lm/W	4-DIP	2.3 V	5.08 mm	5.08 mm	0.262 in	25 °C	70 °	9 lm	11 lm	6 lm	0.299 in	0.299 in
CreeLED, Inc. CP41A-RFS-CM0P0JJ4		Through Hole	70 mA	Red						4-EDIP P4	2.3 V	5.08 mm	5.08 mm			70 °				7.6 mm	7.6 mm	6.4 mm	Domed Top Round	Standard	8250 mcd	624 nm	3 mm	Clear
CreeLED, Inc. CP41A-PHS-CM0P0JJ4	70 mA	Through Hole	70 mA	Orange	612 nm	618 nm	615 nm	615 nm	56 lm/W	4-DIP	2.3 V	5.08 mm	5.08 mm	0.262 in	25 °C	100 °	9 lm	11 lm	6 lm	0.299 in	0.299 in
CreeLED, Inc. CP41A-PHS-CL0P0JJ4	70 mA	Through Hole	70 mA	Orange	612 nm	618 nm	615 nm	615 nm	50 lm/W	4-DIP	2.3 V	5.08 mm	5.08 mm	0.262 in	25 °C	100 °	8 lm	11 lm	4 lm	0.299 in	0.299 in
CreeLED, Inc. CP41A-PHS-CM0P0JJ4	70 mA	Through Hole	70 mA	Orange	612 nm	618 nm	615 nm	615 nm	56 lm/W	4-DIP	2.3 V	5.08 mm	5.08 mm	0.262 in	25 °C	100 °	9 lm	11 lm	6 lm	0.299 in	0.299 in
CreeLED, Inc. CP41A-PDS-CM0N0JJ4	70 mA	Through Hole	70 mA	Orange	612 nm	618 nm	615 nm	615 nm	50 lm/W	4-DIP	2.3 V	5.08 mm	5.08 mm	0.278 in	25 °C	40 °	8 lm	9 lm	6 lm	0.299 in	0.299 in
CreeLED, Inc. CP41A-AHS-CL0P0354		Through Hole	70 mA	Amber						4-EDIP P4	2.5 V	5.08 mm	5.08 mm			100 °				7.6 mm	7.6 mm	6 mm	Domed Top Round	Standard	7700 mcd	591 nm	3 mm	Clear
CreeLED, Inc. CP41A-PDS-CL0N0JJ4	70 mA	Through Hole	70 mA	Orange	612 nm	618 nm	615 nm	615 nm	43 lm/W	4-DIP	2.3 V	5.08 mm	5.08 mm	0.278 in	25 °C	40 °	7 lm	9 lm	4 lm	0.299 in	0.299 in
CreeLED, Inc. CP41A-AHS-CM0P0454		Through Hole	70 mA	Amber						4-EDIP P4	2.5 V	5.08 mm	5.08 mm			100 °				7.6 mm	7.6 mm	6 mm	Domed Top Round	Standard	8250 mcd	591 nm	3 mm	Clear
CreeLED, Inc. CP41A-RDS-CM0P0JJ4		Through Hole	70 mA	Red						4-EDIP P4	2.3 V	5.08 mm	5.08 mm			40 °				7.6 mm	7.6 mm	6.8 mm	Domed Top Round	Standard	8250 mcd	624 nm	3 mm	Clear

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

CP41A-RDS-CL0N0JJ4 | Datasheet
