100DP3T1B9M1QEH

Active

E-Switch

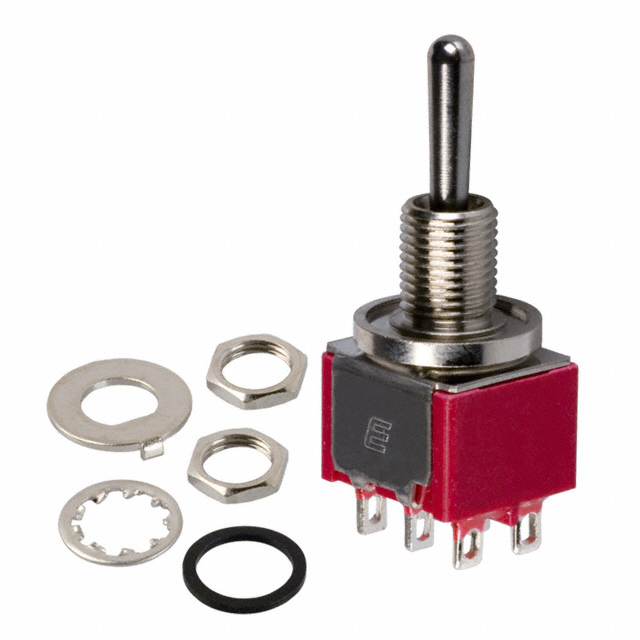

SWITCH TOGGLE DPDT 5A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100DP3T1B9M1QEH

Active

E-Switch

SWITCH TOGGLE DPDT 5A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100DP3T1B9M1QEH	100DP3 Series

Actuator Length [x]	10.41 mm	5.08 - 21.34 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	1/4-40	Unthreaded, 15/32-32, 1/4-40
Circuit	DPDT	DPDT
Current Rating (Amps)	5 A	0.4 - 5 A
Electrical Life	40000 Cycles	40000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	-	Through Hole, Vertical, Right Angle, Panel Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in	0.25 - 11.91 mm
Switch Function	On-Off-On	On-Off-On
Termination Style	Solder Lug	PC Pin, Solder Lug, Wire Wrap
Voltage Rating - AC	120 V	20 - 120 V
Voltage Rating - DC	28 V	20 - 28 V

100DP3 Series

SWITCH TOGGLE DPDT 5A 120V

Part	Voltage Rating - AC	Features	Bushing Thread	Actuator Type	Illumination	Current Rating (Amps)	Termination Style	Circuit	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Actuator Material	Mounting Type	Electrical Life	Actuator Length [x]	Panel Cutout Dimensions [diameter]
E-Switch 100DP3T2B2M7QE	120 V	Epoxy Sealed Terminals	Unthreaded	Standard Round	Non-Illuminated	5 A	PC Pin	DPDT	28 V	-30 ░C	85 °C	On-Off-On	Brass, Chrome Plated	Right Angle, Through Hole, Vertical	40000 Cycles	5.08 mm
E-Switch 100DP3T7B13M2QE	120 V	Epoxy Sealed Terminals	15/32-32	Standard Round	Non-Illuminated	5 A	PC Pin	DPDT	28 V	-30 ░C	85 °C	On-Off-On	Brass, Chrome Plated		40000 Cycles	13 mm	11.91 mm
E-Switch 100DP3T1B1M2RE	20 V	Epoxy Sealed Terminals	1/4-40	Standard Round	Non-Illuminated	0.4 VA	PC Pin	DPDT	20 V	-30 ░C	85 °C	On-Off-On	Brass, Chrome Plated		40000 Cycles	10.41 mm	0.25 in
E-Switch 100DP3T8B13M1RE	20 V	Epoxy Sealed Terminals	15/32-32	Standard Round	Non-Illuminated	0.4 VA	Solder Lug	DPDT	20 V	-30 ░C	85 °C	On-Off-On	Brass, Chrome Plated		40000 Cycles	17.98 mm	11.91 mm
E-Switch 100DP3T1B1M6QEH	120 V	Epoxy Sealed Terminals	1/4-40	Standard Round	Non-Illuminated	5 A	PC Pin	DPDT	28 V	-30 ░C	85 °C	On-Off-On	Brass, Chrome Plated	Panel Mount, Right Angle	40000 Cycles	10.41 mm	0.25 in
E-Switch 100DP3T1B9M2QE	120 V	Epoxy Sealed Terminals	1/4-40	Standard Round	Non-Illuminated	5 A	PC Pin	DPDT	28 V	-30 ░C	85 °C	On-Off-On	Brass, Chrome Plated		40000 Cycles	10.41 mm	0.25 in
E-Switch 100DP3T8B13M1QEH	120 V	Epoxy Sealed Terminals	15/32-32	Standard Round	Non-Illuminated	5 A	Solder Lug	DPDT	28 V	-30 ░C	85 °C	On-Off-On	Brass, Chrome Plated		40000 Cycles	18 mm	11.91 mm
E-Switch 100DP3T5B4M2RE	20 V	Epoxy Sealed Terminals	Unthreaded	Standard Round	Non-Illuminated	0.4 VA	PC Pin	DPDT	20 V	-30 ░C	85 °C	On-Off-On	Brass, Chrome Plated	Through Hole	40000 Cycles	21.34 mm
E-Switch 100DP3T8B13M2QEH	120 V	Epoxy Sealed Terminals	15/32-32	Standard Round	Non-Illuminated	5 A	PC Pin	DPDT	28 V	-30 ░C	85 °C	On-Off-On	Brass, Chrome Plated		40000 Cycles	18 mm	11.91 mm
E-Switch 100DP3T1B1M2REH	20 V	Epoxy Sealed Terminals	1/4-40	Standard Round	Non-Illuminated	0.4 VA	PC Pin	DPDT	20 V	-30 ░C	85 °C	On-Off-On	Brass, Chrome Plated		40000 Cycles	10.41 mm	0.25 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	960	$ 3.07

Description

General part information

100DP3 Series

Toggle Switch DPDT Panel Mount
