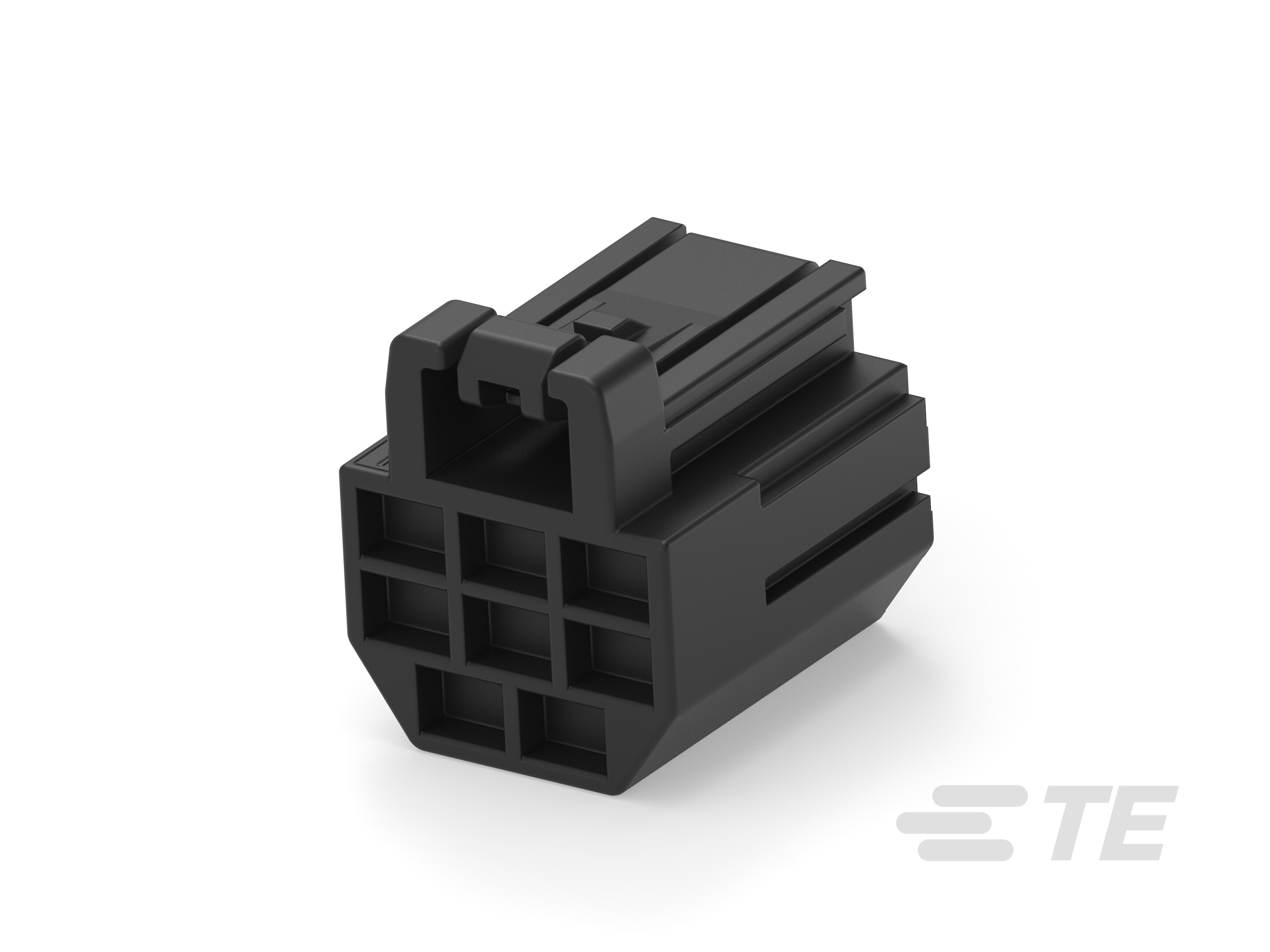

DYNAMIC D1000 SLIM REC HSG 8P Y KEY-2-2366515-8

2-2366515-8

Active
TE Connectivity AMP Connectors

CONNECTOR HOUSING, DYNAMIC D-1000 SERIES, RECEPTACLE, 8 POSITIONS, 2 MM

Find alt
DYNAMIC D1000 SLIM REC HSG 8P Y KEY-2-2366515-8

2-2366515-8

Active
TE Connectivity AMP Connectors

CONNECTOR HOUSING, DYNAMIC D-1000 SERIES, RECEPTACLE, 8 POSITIONS, 2 MM

Find alt

Description

General part information

Dynamic 1000 Series Series

Dynamic D1000 slim small wire-to-wire connector is suitable for narrow spaces in small industrial equipment and small machinery applications. The size of the D1000 is 80% smaller than the D1200 series with low interference risk and streamlined design. Keying and the locking feature provide reliability and reduces unexpected unmating and lever breakage in narrow spaces such as robotic arms and other customer applications. Target markets are small industrial equipment, small machinery applications, robot, AGV and factory automation. Applications includes robotics, small Industrial robot, collaborative robot, scala robot, automatic-guided vehicle (AGV), servo motor and sensors.

Technical Specifications

Parameters and characteristics for this part

Specification2-2366515-8
ColorBlack
Connector TypeReceptacle
Contact TerminationCrimp
Contact TypeFemale Socket
Fastening TypeLatch Holder
Insulation MaterialGlass Filled, Thermoplastic
Mounting TypeFree Hanging (In-Line)
Number of Positions8
Number of Rows3
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
