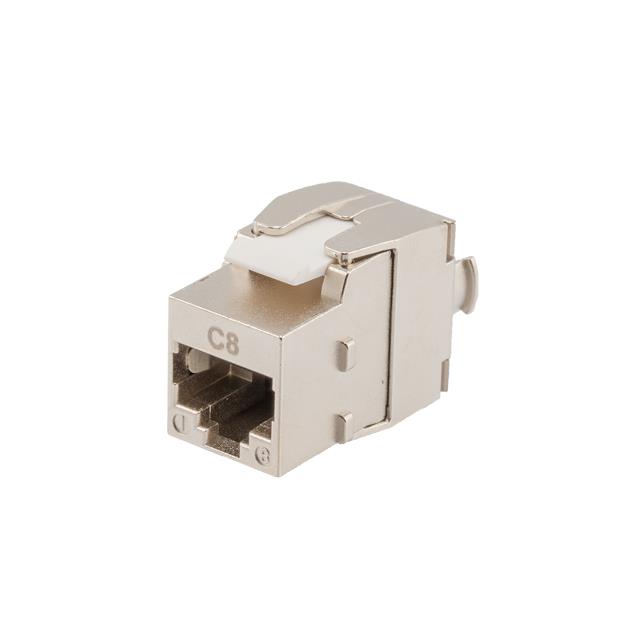

RJTLC8S-POE
ActiveMODULAR CONNECTOR, RJ45 JACK, TOOL-LESS W/ POE++, 1 X 1 (PORT), 8P8C, CAT8, CABLE MOUNT
RJTLC8S-POE
ActiveMODULAR CONNECTOR, RJ45 JACK, TOOL-LESS W/ POE++, 1 X 1 (PORT), 8P8C, CAT8, CABLE MOUNT
Description
General part information
RJTLC8S-POE
Keystone Category 8 tool-less style connectors make for a simple installation without the need for a punch-down tool. Each jack is colour coded for both the EIA/TIA568 A and B standards making for a quick and painless installation. Each connector is gated to prevent unwanted and accidental disconnects on the punch-down side. It is fully compliant with PoE++ 802.3bt standards. Typical application include premise wiring, Power over Ethernet, 10gig, 25gig or 40gig Ethernet such as Category 6a, 7 or 8, LAN and field installations and repair.
Technical Specifications
Parameters and characteristics for this part
| Specification | RJTLC8S-POE |
|---|---|
| Exterior Contact Finish | Gold |
| Exterior Contact Finish Thickness | 50 µin |
| Exterior Contact Material | Phosphor Bronze |
| Exterior Housing Color | Silver |
| Exterior Housing Material | Zinc Alloy |
| Exterior Type (Adapter End) | Modular Jack 8p8c (RJ45, Ethernet) |
| Features | Shielded |
| Interior Contact Finish | Tin |
| Interior Contact Material | Phosphor Bronze |
| Interior Housing Color | Silver |
| Interior Housing Material | Polycarbonate (PC) |
| Interior Type (Adapter End) | IDC, Punchdown Block, Pressdown |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Ratings | Cat8 |
| Style | Modular |
