MPM24-MPM212OM4Z-10
ActivePasternack
MPO24 W/ PINS TO 2XMPO12 W/ PINS
MPM24-MPM212OM4Z-10
ActivePasternack
MPO24 W/ PINS TO 2XMPO12 W/ PINS
Description
General part information
MPM24-MPM212OM4Z-10

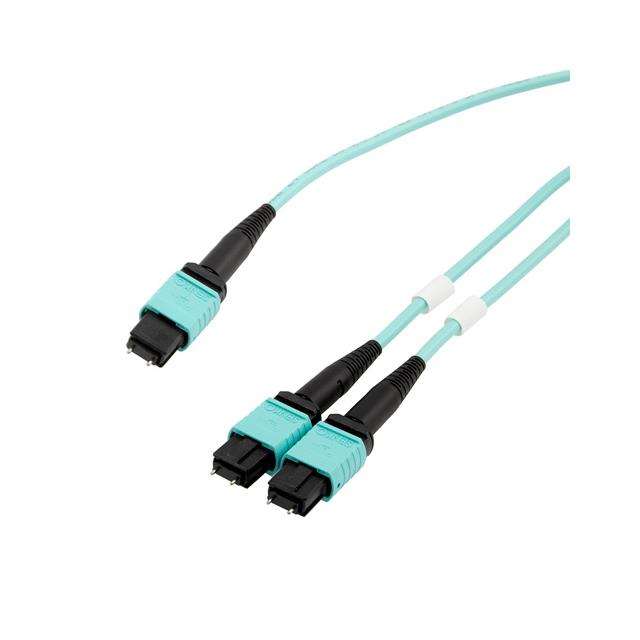

Cable Fiber Optic MPO To MPO (2) 50/125 32.8' (10.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | MPM24-MPM212OM4Z-10 |
|---|---|
| 1st Connector | MPO |
| 2nd Connector | MPO |
| 2nd Connector Count | 2 pcs |
| Color - Cable | Aqua |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 50 µm |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Length - Overall | 32.8 ft |
| Type | OM4, Multimode |
