111SM2

Active

Honeywell Sensing and Productivity Solutions

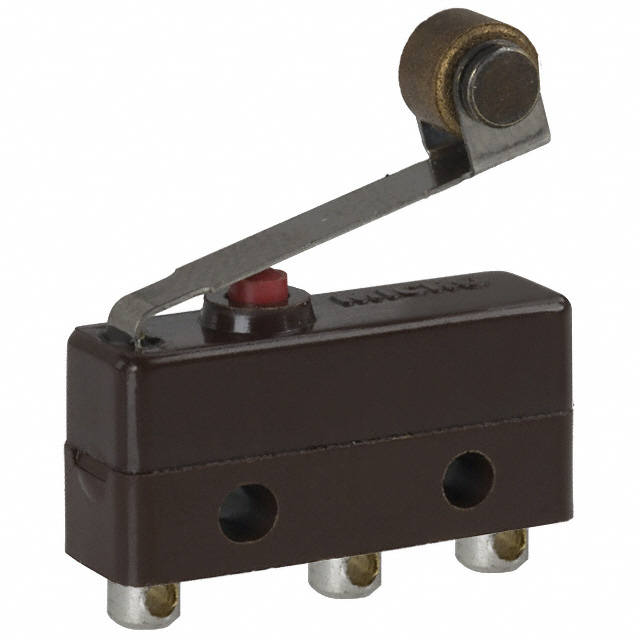

SWITCH SNAP ACTION SPDT 5A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

111SM2

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 250V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 17.09
		10	$ 14.15
		25	$ 13.12
		40	$ 12.63
		80	$ 15.83
		100	$ 11.94
		230	$ 14.52
		440	$ 14.00

Description

General part information

111SM Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	111SM2	111SM Series

Actuator Type	Roller, Lever	Lever, Straight, Roller, Lever
Circuit	SPDT	SPDT
Current Rating (Amps)	5 A	5 A
Differential Travel	0.6 mm	0.1 - 1.4 mm
Differential Travel	0.025 in	0.004 - 0.055 in
Mechanical Life	10000000 Cycles	10000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount, Through Hole
Operating Force	198 gf	170 - 340 gf
Operating Position	0.562 in	0.562 in
Operating Position	14.3 mm	14.3 mm
Operating Position	-	0.35 in
Operating Position	-	8.9 mm
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Overtravel	0.76 mm	0.3 - 0.76 mm
Overtravel	0.03 in	0.011 - 0.03 in
Pretravel	0.218 in	0.15 - 0.218 in
Pretravel	5.5 mm	3.8 - 5.5 mm
Release Force	57 gf	14 - 57 gf
Switch Function	On-Mom	On-Mom
Termination Style	Solder Lug	Solder Lug, PC Pin, Solder Turret, Quick Connect - 0.058 in (Round), Quick Connect - 0.110" (2.8mm)
Voltage Rating - AC	250 V	125 - 250 V
Voltage Rating - DC	30 V	30 V

111SM Series

SWITCH SNAP ACTION SPDT 5A 250V

Part	Current Rating (Amps)	Operating Position [x]	Operating Position [x]	Voltage Rating - DC	Differential Travel	Differential Travel	Release Force	Overtravel	Overtravel	Mechanical Life	Operating Force	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Pretravel	Pretravel	Switch Function	Mounting Type	Voltage Rating - AC	Circuit	Actuator Type	Operating Position	Operating Position
Honeywell Sensing and Productivity Solutions 111SM247	5 A	0.35 in	8.9 mm	30 V	0.03 in	0.76 mm	57 gf	0.76 mm	0.03 in	10000000 Cycles	198 gf	Solder Lug	-55 °C	125 °C	0.218 in	5.5 mm	On-Mom	Chassis Mount	250 V	SPDT	Lever, Straight
Honeywell Sensing and Productivity Solutions 111SM1	5 A	0.35 in	8.9 mm	30 V	0.03 in	0.76 mm	57 gf	0.76 mm	0.03 in	10000000 Cycles	198 gf	Solder Lug	-55 °C	125 °C	0.218 in	5.5 mm	On-Mom	Chassis Mount	250 V	SPDT	Lever, Straight
Honeywell Sensing and Productivity Solutions 111SM117-H2	5 A	0.35 in	8.9 mm	30 V	0.004 in	0.1 mm	57 gf	0.3 mm	0.011 in	10000000 Cycles	227 gf	PC Pin	-55 °C	125 °C	0.15 in	3.8 mm	On-Mom	Through Hole	250 V	SPDT	Lever, Straight
Honeywell Sensing and Productivity Solutions 111SM23-T				30 V	0.025 in	0.6 mm	57 gf	0.76 mm	0.03 in	10000000 Cycles	198 gf	Solder Turret	-55 °C	125 °C	0.218 in	5.5 mm	On-Mom	Chassis Mount	125 V	SPDT	Lever, Roller	0.562 in	14.3 mm
Honeywell Sensing and Productivity Solutions 111SM244	5 A	0.35 in	8.9 mm	30 V	0.03 in	0.76 mm	57 gf	0.76 mm	0.03 in	10000000 Cycles	198 gf	Solder Lug	-55 °C	125 °C	0.218 in	5.5 mm	On-Mom	Chassis Mount	250 V	SPDT	Lever, Straight
Honeywell Sensing and Productivity Solutions 111SM1-H58	5 A	0.35 in	8.9 mm	30 V	0.03 in	0.76 mm	57 gf	0.76 mm	0.03 in	10000000 Cycles	198 gf	Quick Connect - 0.058 in (Round)	-55 °C	125 °C	0.218 in	5.5 mm	On-Mom	Chassis Mount	250 V	SPDT	Lever, Straight
Honeywell Sensing and Productivity Solutions 111SM1-H2	5 A	0.35 in	8.9 mm	30 V	0.03 in	0.76 mm	57 gf	0.76 mm	0.03 in	10000000 Cycles	198 gf	PC Pin	-55 °C	125 °C	0.218 in	5.5 mm	On-Mom	Through Hole	250 V	SPDT	Lever, Straight
Honeywell Sensing and Productivity Solutions 111SM858-H403	5 A	0.35 in	8.9 mm	30 V	0.03 in	0.76 mm	57 gf	0.76 mm	0.03 in	10000000 Cycles	198 gf	Quick Connect - 0.110" (2.8mm)	-55 °C	125 °C	0.218 in	5.5 mm	On-Mom	Chassis Mount	250 V	SPDT	Lever, Straight
Honeywell Sensing and Productivity Solutions 111SM17-T		0.35 in	8.9 mm	30 V	0.03 in	0.76 mm	57 gf	0.76 mm	0.03 in	10000000 Cycles	198 gf	Solder Turret	-55 °C	125 °C	0.218 in	5.5 mm	On-Mom	Chassis Mount	125 V	SPDT	Lever, Straight
Honeywell Sensing and Productivity Solutions 111SM1-T2	5 A	0.35 in	8.9 mm	30 V	0.03 in	0.76 mm	57 gf	0.76 mm	0.03 in	10000000 Cycles	198 gf	Solder Turret	-55 °C	125 °C	0.218 in	5.5 mm	On-Mom	Chassis Mount	250 V	SPDT	Lever, Straight
