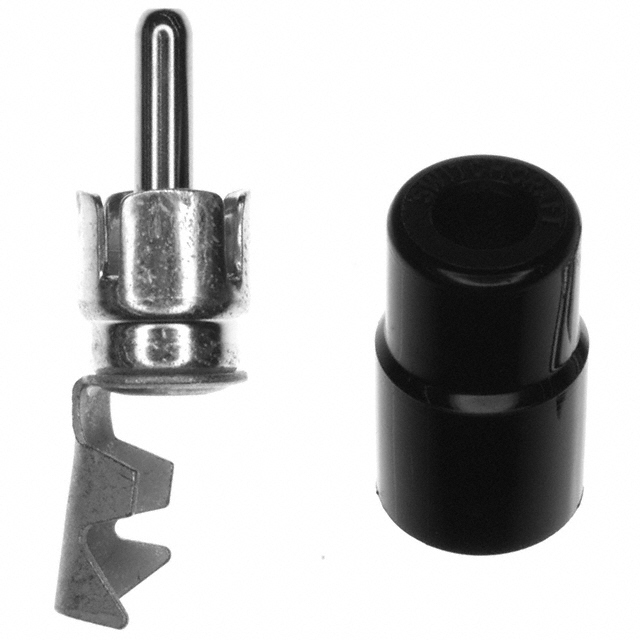

3558-2
ObsoleteSWITCHCRAFT/CONXALL
CONN RCA PLUG MONO 2COND
3558-2
ObsoleteSWITCHCRAFT/CONXALL
CONN RCA PLUG MONO 2COND
Description
General part information
3558-2
3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Plug Mono Connector Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 3558-2 |
|---|---|
| Body Color | Black, Silver |
| Body Material | Copper Alloy |
| Cable Opening | 0.203 in |
| Connector Type | Phono (RCA) Plug |
| Contact Material - Plating | Nickel |
| Gender | Male |
| Housing Material | Thermoplastic |
| Includes | Connector, Handle |
| Includes Total Count | 2 pcs |
| Industry Recognized Mating Diameter (ID) | 3.2 mm |
| Industry Recognized Mating Diameter (OD) | 9 mm |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.64 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 2 Conductors |
| Number of Contacts | 2 Contacts |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder |
