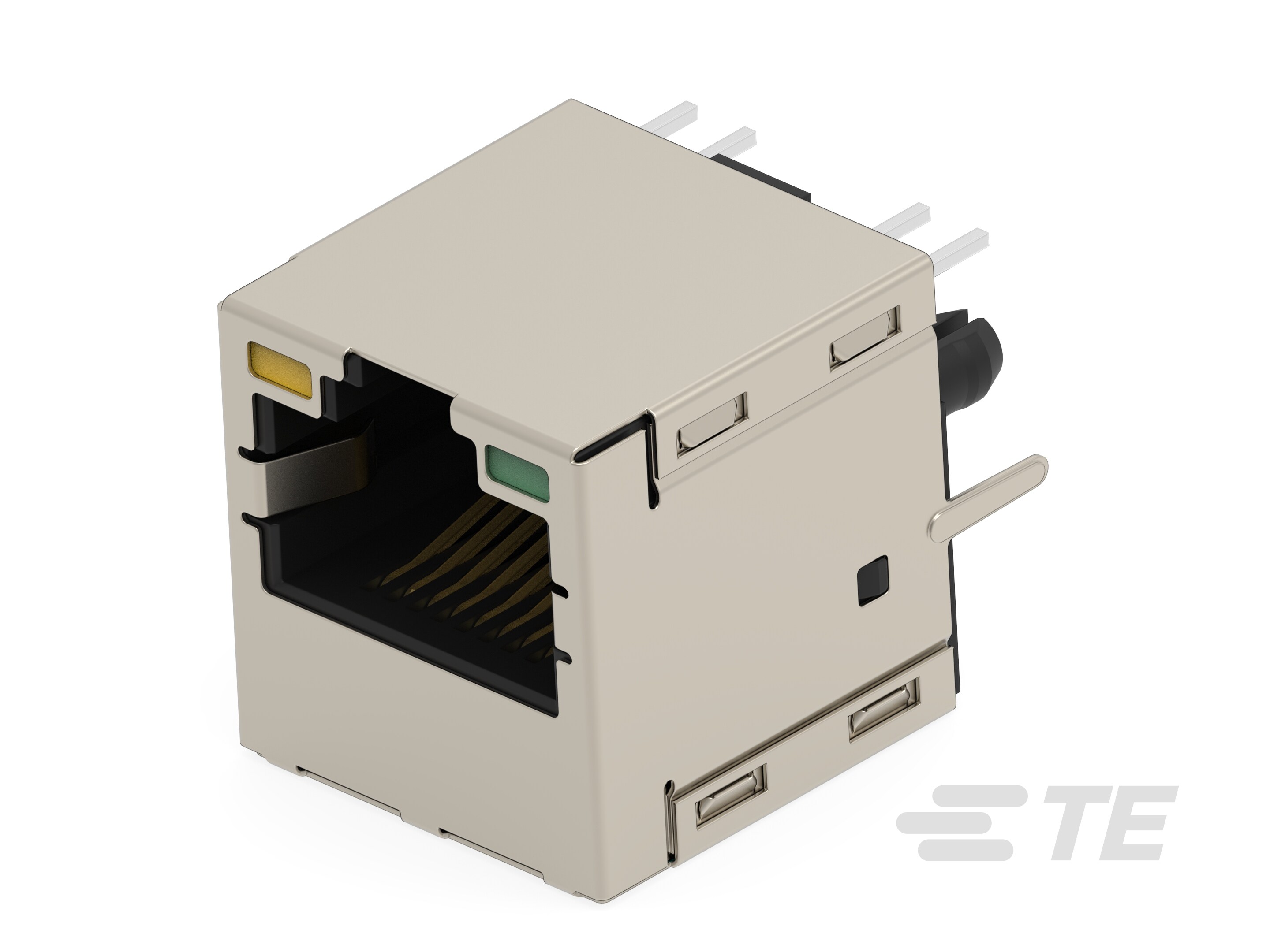

2488953-1
ActiveTE Connectivity AMP Connectors
RJ45 W/MGNT 1X1 100BASE-T LED PLTNG T 50
2488953-1
ActiveTE Connectivity AMP Connectors
RJ45 W/MGNT 1X1 100BASE-T LED PLTNG T 50
Description
General part information
2488953-1
RJ45 Connector, Single Port, 1 x 1, Jack, Shielded, Cat 5, 8 Position, Standard Profile, Through Hole - Solder, Vertical, Top Entry
Technical Specifications
Parameters and characteristics for this part
| Specification | 2488953-1 |
|---|---|
| Applications | 10/100 Base-TX, AutoMDIX |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Features | Board Lock |
| Height Above Board | 0.665 in |
| LED Color | Green - Yellow |
| Mounting Type | Through Hole |
| Number of Cores per Jack | 4 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Orientation | Vertical |
| Shielding | Shielded |
| Tab Direction | User Selectable |
| Termination | Solder |
