4-1718353-3
ActiveTE Connectivity AMP Connectors
2POS,5.8X0.8,TAB HSG,COD D
4-1718353-3
ActiveTE Connectivity AMP Connectors
2POS,5.8X0.8,TAB HSG,COD D
Description
General part information
4-1718353-3

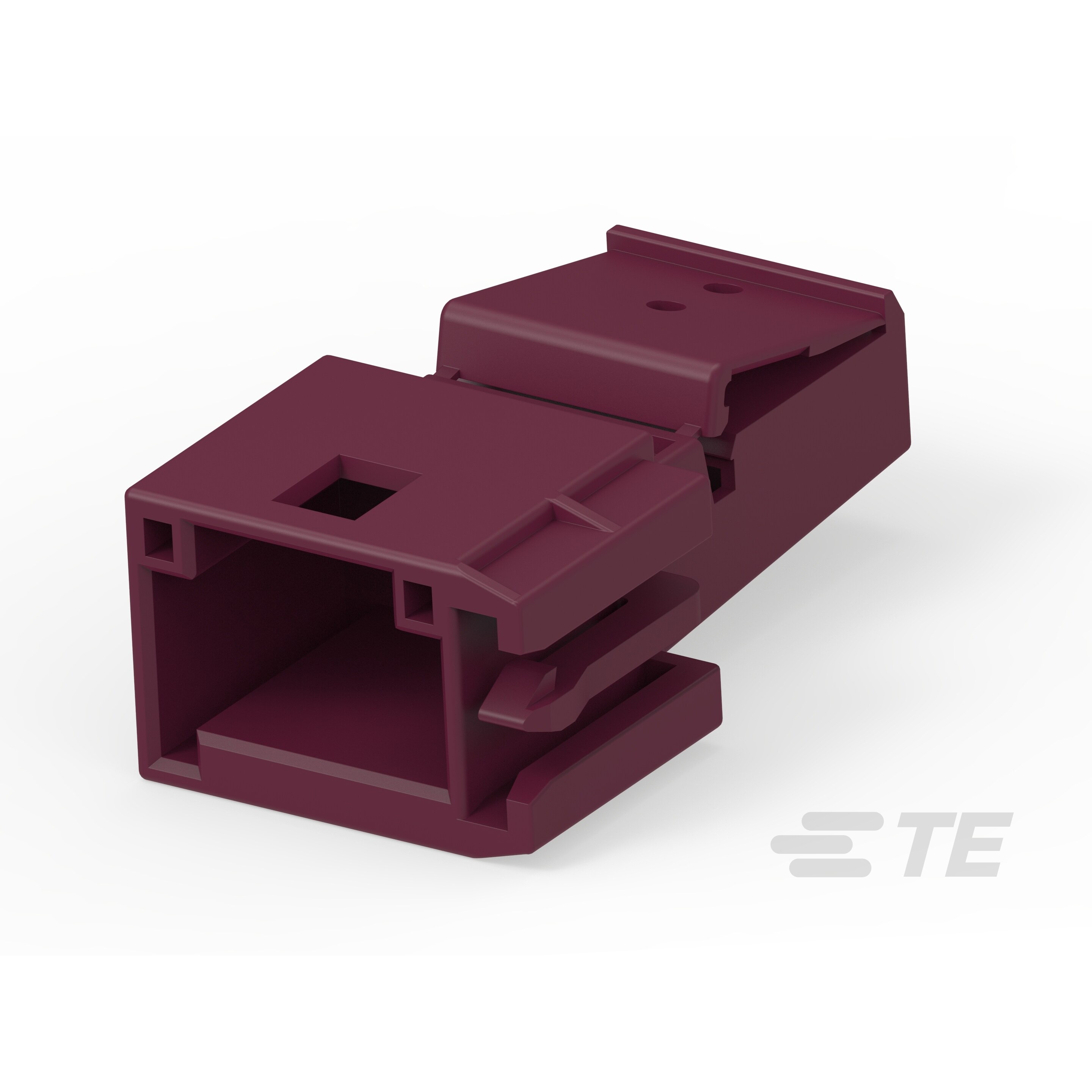

2 Position Housing, Housing for Male Terminals, Wire-to-Board / Wire-to-Wire, 8 mm [.315 in] Centerline, Violet, AMP MCP Connector System
Technical Specifications
Parameters and characteristics for this part
| Specification | 4-1718353-3 |
|---|---|
| Color | Violet |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Latch Lock |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.315 in |
