FMCA2098-6
ActiveFairview Microwave
COAX CBL SMA TO N-TYPE 6"
FMCA2098-6
ActiveFairview Microwave
COAX CBL SMA TO N-TYPE 6"
Description
General part information
FMCA2098-6

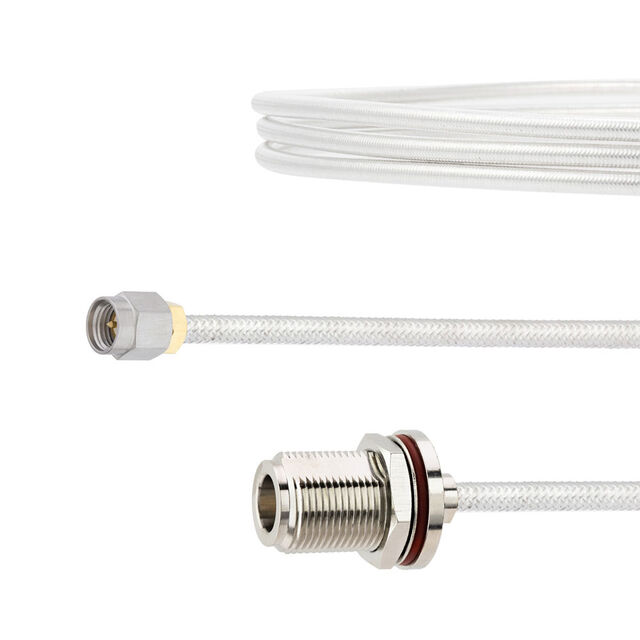

Cable Assembly Coaxial SMA to N-Type Hand Formable .141 6.000" (152.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2098-6 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.141 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 11 GHz |
| Length | 0.5 ft |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
