B78108S1684J009
ActiveEPCOS - TDK Electronics
FIXED IND 680UH 150MA 10 OHM TH
B78108S1684J009
ActiveEPCOS - TDK Electronics
FIXED IND 680UH 150MA 10 OHM TH
Description
General part information
B78108S1684J009

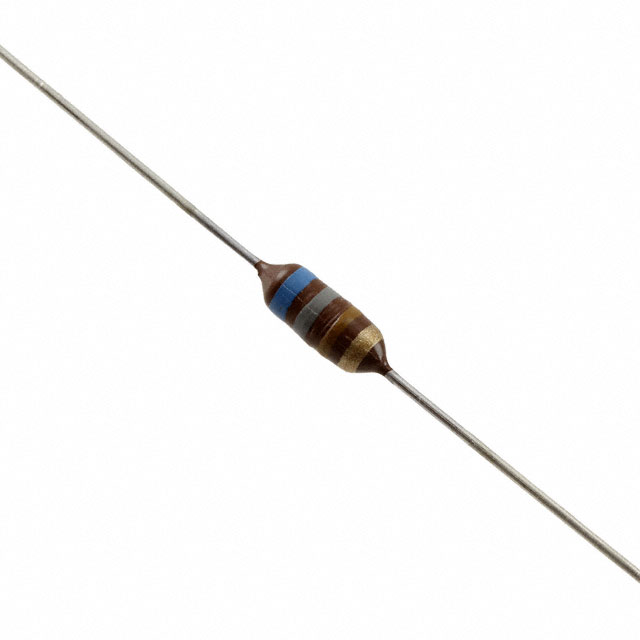

680 µH Unshielded Wirewound Inductor 150 mA 10Ohm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B78108S1684J009 |
|---|---|
| Current Rating | 150 mA |
| DC Resistance (DCR) (Max) | 10 Ohm |
| Frequency - Self Resonant | 1.9 MHz |
| Inductance | 680 µH |
| Inductance Frequency - Test | 796 kHz |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Q | 55 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.157 in |
| Size / Dimension Length | 0.362 in |
| Tolerance | 5 % |
| Type | Wirewound |
