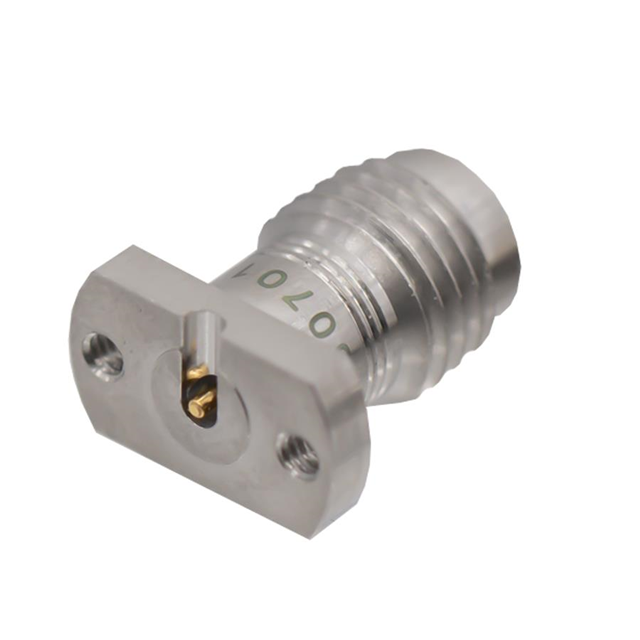

147-0701-222

Active

Cinch Connectivity Solutions Johnson

2.4MM JACK, PCB COMPRESSION MOUN

Deep-Dive with AI

Search across all available documentation for this part.

147-0701-222

Active

Cinch Connectivity Solutions Johnson

2.4MM JACK, PCB COMPRESSION MOUN

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	147-0701-222

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	OS-50
Connector Style	2.4 mm
Connector Style	APC-2.4
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Mounting Hardware
Frequency - Max [Max]	50 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Screw

147-0701 Series

Part	Frequency - Max [Max]	Contact Termination	Body Material	Dielectric Material	Housing Color	Impedance	Body Finish	Connector Style	Connector Style	Connector Style	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Number of Ports	Center Contact Plating	Connector Type	Shield Termination	Mounting Type	Center Contact Material	Mounting Feature	Features
Cinch Connectivity Solutions Johnson 147-0701-261	50 GHz	Solder	Brass	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Gold	OS-50	2.4 mm	APC-2.4	150 VDC	85 °C	-40 °C	500	1	Gold	Female Socket Jack	Solder	Board Edge End Launch	Beryllium Copper
Cinch Connectivity Solutions Johnson 147-0701-222	50 GHz	Solder	Stainless Steel	Polytetrafluoroethylene (PTFE)	Silver	50 Ohms		OS-50	2.4 mm	APC-2.4		165 °C	-65 ░C	500	1	Gold	Female Socket Jack	Screw	Surface Mount	Beryllium Copper	Flange	Mounting Hardware
Cinch Connectivity Solutions Johnson 147-0701-832	50 GHz	Solder	Stainless Steel	Polytetrafluoroethylene (PTFE)	Silver	50 Ohms		OS-50	2.4 mm	APC-2.4		125 °C	-55 °C	500	1	Gold	Female Socket Jack	Screw	Board Edge End Launch	Beryllium Copper		Mounting Hardware
Cinch Connectivity Solutions Johnson 147-0701-251	50 GHz	Solder	Brass	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Gold	OS-50	2.4 mm	APC-2.4	150 VDC	85 °C	-40 °C	500	1	Gold	Female Socket Jack	Solder	Board Edge End Launch Right Angle Through Hole	Beryllium Copper
Cinch Connectivity Solutions Johnson 147-0701-271	50 GHz	Solder	Brass	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Gold	OS-50	2.4 mm	APC-2.4	150 VDC	85 °C	-40 °C	500	1	Gold	Female Socket Jack	Solder	Board Edge End Launch	Beryllium Copper
Cinch Connectivity Solutions Johnson 147-0701-822	50 GHz	Solder	Stainless Steel	Polytetrafluoroethylene (PTFE)	Silver	50 Ohms		OS-50	2.4 mm	APC-2.4		125 °C	-55 °C	500	1	Gold	Female Socket Jack	Screw	Board Edge End Launch	Beryllium Copper		Mounting Hardware
Cinch Connectivity Solutions Johnson 147-0701-241	50 GHz	Solder	Brass	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Gold	OS-50	2.4 mm	APC-2.4	150 VDC	85 °C	-40 °C	500	1	Gold	Female Socket Jack	Solder	Board Edge End Launch	Beryllium Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 40.63
		10	$ 35.58
		25	$ 34.04
		50	$ 32.95
		100	$ 31.85
		250	$ 30.09

Description

General part information

147-0701 Series

2.4mm (APC-2.4, OS-50) Connector Jack, Female Socket 50 Ohms Surface Mount Solder

Documents

Technical documentation and resources

No documents available
