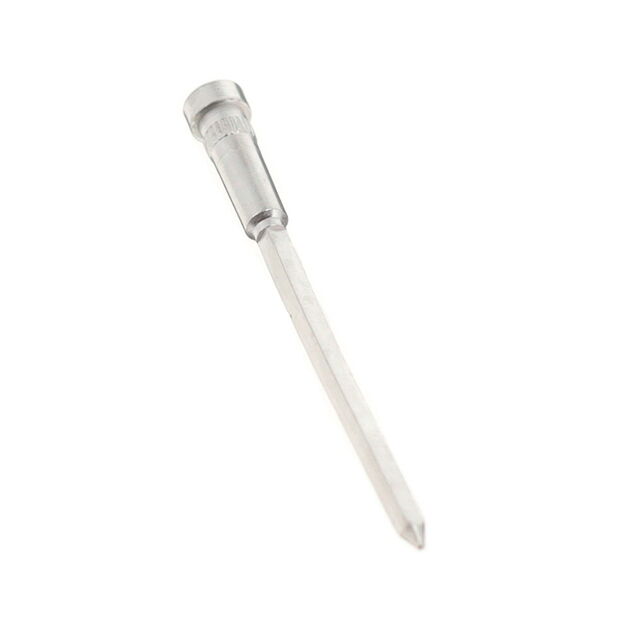

0038-3-17-80-30-84-02-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Deep-Dive with AI

Search across all available documentation for this part.

0038-3-17-80-30-84-02-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0038-3-17-80-30-84-02-0	0038-3 Series

Accepts Pin Diameter [Max]	0.025 "	0.025 "
Accepts Pin Diameter [Max]	0.64 mm	0.64 mm
Accepts Pin Diameter [Min]	0.015 "	0.015 "
Accepts Pin Diameter [Min]	0.38 mm	0.38 mm
Contact Finish	Tin	Gold, Unplated, Tin, Tin-Lead
Contact Finish Thickness	2.54 µm	0.25 - 2.54 Ám
Contact Finish Thickness	100 µin	10 - 100 Áin
Contact Material	Beryllium Copper	Beryllium Copper
Flange Diameter [diameter]	1.83 mm	1.83 mm
Flange Diameter [diameter]	0.072 in	0.072 in
Length - Overall [x]	17.78 mm	17.78 mm
Length - Overall [x]	0.7 in	0.7 in
Mounting Hole Diameter [diameter]	0.057 "	0.057 "
Mounting Hole Diameter [diameter]	1.45 mm	1.45 mm
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Socket Depth	0.162 in	0.083 - 0.162 in
Socket Depth	4.12 mm	2.11 - 4.12 mm
Tail Diameter	0.64 mm	0.64 mm
Tail Diameter	0.025 in	0.025 in
Tail Type	Wire Wrap	Wire Wrap
Termination	Press-Fit	Press-Fit

0038-3 Series

CONN PIN RCPT

Part	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Diameter	Tail Diameter	Length - Overall [x]	Length - Overall [x]	Contact Material	Tail Type
Mill-Max Manufacturing Corp. 0038-3-17-80-30-14-02-0	0.057 "	1.45 mm	-55 °C	125 °C	0.162 in	4.12 mm	Press-Fit	10 Áin	0.25 Ám	Gold	0.025 "	0.64 mm	0.015 "	0.38 mm	1.83 mm	0.072 in	0.64 mm	0.025 in	17.78 mm	0.7 in	Beryllium Copper	Wire Wrap
Mill-Max Manufacturing Corp. 0038-3-05-15-00-00-01-0	0.057 "	1.45 mm					Press-Fit			Unplated					1.83 mm	0.072 in			17.78 mm	0.7 in		Wire Wrap
Mill-Max Manufacturing Corp. 0038-3-17-80-30-84-02-0	0.057 "	1.45 mm	-55 °C	125 °C	0.162 in	4.12 mm	Press-Fit	100 µin	2.54 µm	Tin	0.025 "	0.64 mm	0.015 "	0.38 mm	1.83 mm	0.072 in	0.64 mm	0.025 in	17.78 mm	0.7 in	Beryllium Copper	Wire Wrap
Mill-Max Manufacturing Corp. 0038-3-17-01-30-27-02-0	0.057 "	1.45 mm	-55 °C	125 °C	0.162 in	4.12 mm	Press-Fit	30 Áin	0.76 Ám	Gold	0.025 "	0.64 mm	0.015 "	0.38 mm	1.83 mm	0.072 in	0.64 mm	0.025 in	17.78 mm	0.7 in	Beryllium Copper	Wire Wrap
Mill-Max Manufacturing Corp. 0038-3-17-15-30-27-02-0	0.057 "	1.45 mm	-55 °C	125 °C	0.162 in	4.12 mm	Press-Fit	30 Áin	0.76 Ám	Gold	0.025 "	0.64 mm	0.015 "	0.38 mm	1.83 mm	0.072 in	0.64 mm	0.025 in	17.78 mm	0.7 in	Beryllium Copper	Wire Wrap
Mill-Max Manufacturing Corp. 0038-3-17-01-30-02-02-0	0.057 "	1.45 mm	-55 °C	125 °C	0.083 in	2.11 mm	Press-Fit	100 µin	2.54 µm	Tin-Lead	0.025 "	0.64 mm	0.015 "	0.38 mm	1.83 mm	0.072 in			17.78 mm	0.7 in	Beryllium Copper	Wire Wrap
Mill-Max Manufacturing Corp. 0038-3-05-21-00-00-01-0	0.057 "	1.45 mm					Press-Fit			Unplated					1.83 mm	0.072 in			17.78 mm	0.7 in		Wire Wrap

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.22
		10	$ 1.03
		100	$ 0.93
		1000	$ 0.67
		5000	$ 0.59
		10000	$ 0.56

Description

General part information

0038-3 Series

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Wire Wrap Press-Fit

Documents

Technical documentation and resources

No documents available
