Description
General part information
353150

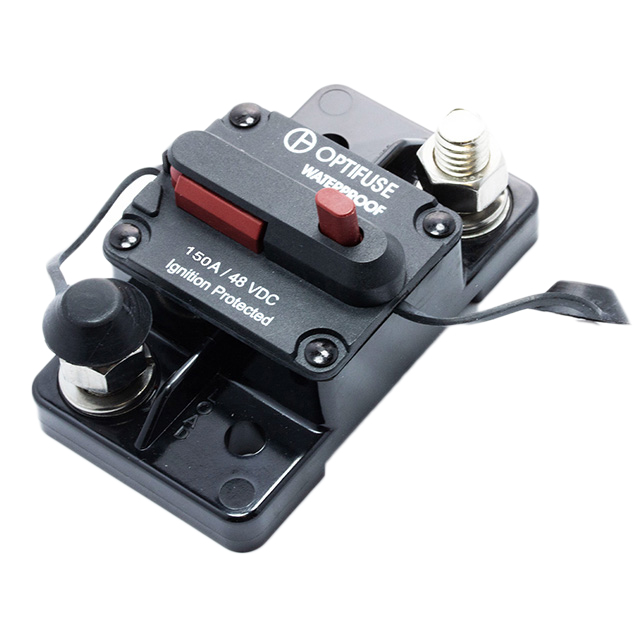

Circuit Breaker 150A AC 48 V DC Push to Reset
Technical Specifications
Parameters and characteristics for this part
| Specification | 353150 |
|---|---|
| Actuator Type | Push to Reset |
| Approval Agency | IP 67, UL 1077, ABYC-E11, SAE J1625, SAE J1171 |
| Breaker Type | Thermal |
| Current Rating | 150 A |
| Illumination | None |
| Number of Poles | 1 |
| Voltage Rating - DC | 48 V |
