1241.6631.1110000
ActiveSCHURTER Inc.

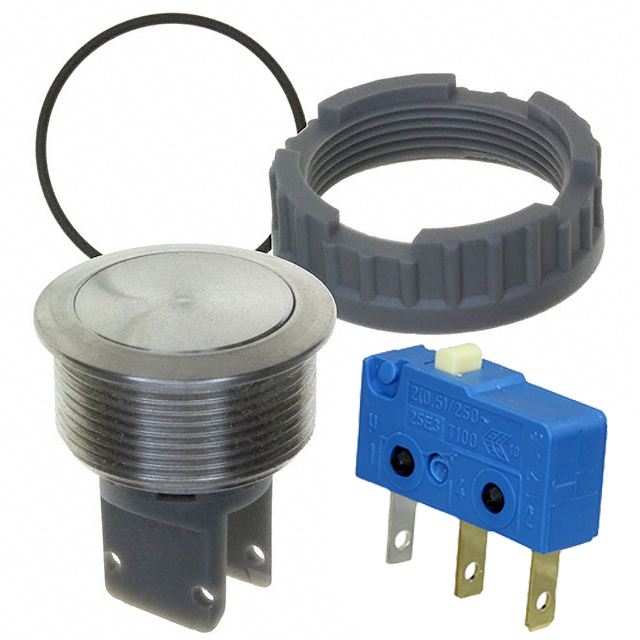

SWITCH PUSHBUTTON SPDT 100MA 30V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241.6631.1110000
ActiveSCHURTER Inc.
SWITCH PUSHBUTTON SPDT 100MA 30V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241.6631.1110000 | 1241.6631 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Flush, Button, Round | Flush, Button, Round |
| Circuit | SPDT | SPDT |
| Color - Actuator/Cap | Silver | Silver |
| Current Rating (Amps) | 100 mA | 5 - 100 mA |
| Electrical Life | 200000 Cycles | 200000 Cycles |
| Ingress Protection | IP40 | IP40 |
| Mechanical Life | 1500000 Cycles | 1500000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 22.1 mm | 22.1 mm |
| Switch Function | On-Mom | On-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) |
| Type | Anti-Vandal | Anti-Vandal |
| Voltage Rating - AC | - | 125 V |
| Voltage Rating - DC | 30 V | 30 V |
1241.6631 Series
SWITCH PUSHBUTTON SPDT 100MA 30V
| Part | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Mechanical Life | Type | Switch Function | Color - Actuator/Cap | Electrical Life | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Circuit | Voltage Rating - DC | Ingress Protection | Actuator Marking | Mounting Type | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 1241.6631.1110000 | Button, Flush, Round | -25 °C | 85 °C | Quick Connect - 0.110" (2.8mm) | 1500000 Cycles | Anti-Vandal | On-Mom | Silver | 200000 Cycles | 100 mA | 22.1 mm | SPDT | 30 V | IP40 | No Marking | Panel Mount, Front | |
SCHURTER Inc. 1241.6631.1120000 | Button, Flush, Round | -25 °C | 85 °C | Quick Connect - 0.110" (2.8mm) | 1500000 Cycles | Anti-Vandal | On-Mom | Silver | 200000 Cycles | 5 A | 22.1 mm | SPDT | IP40 | No Marking | Panel Mount, Front | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1241.6631 Series
Pushbutton Switch SPDT Anti-Vandal Panel Mount, Front
