LC1D09G7
ActiveCONTACTOR, LC1D, 9 A, DIN RAIL, 690 VAC, 3PST-NO, 3 POLE, 7.5 HP
LC1D09G7
ActiveCONTACTOR, LC1D, 9 A, DIN RAIL, 690 VAC, 3PST-NO, 3 POLE, 7.5 HP
Description
General part information
LC1D09G7

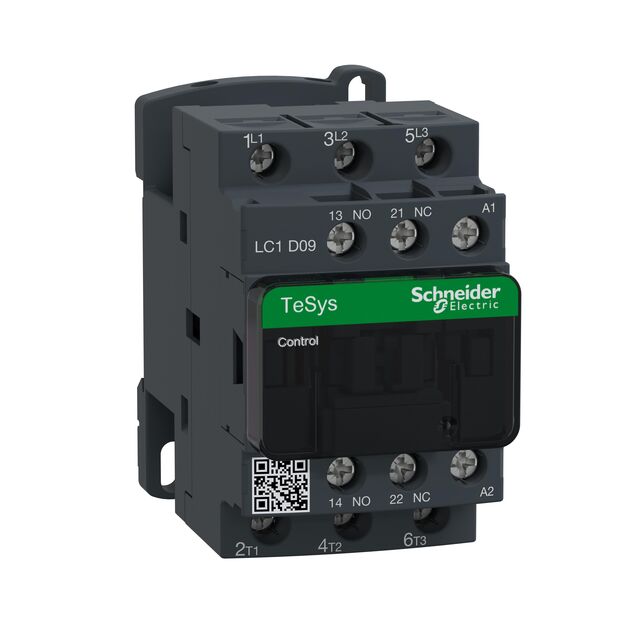

The LC1D09G7 is a 3-pole TeSys D Contactor for perfect integration in control systems. TeSys D contactor operates with 120VAC coil. High-fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR.
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D09G7 |
|---|---|
| Coil Voltage | 120 V |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 9 A |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 102 VAC |
| Must Release Voltage | 36 VDC |
| Operate Time | 22 ms |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 3 pins |
| Release Time | 19 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Screw Terminal |
