N845B-15M-12-MG
ActiveEaton Tripp Lite
100G MULTIMODE 50/125 OM4 FIBER
N845B-15M-12-MG
ActiveEaton Tripp Lite
100G MULTIMODE 50/125 OM4 FIBER
Description
General part information
N845B-15M-12-MG

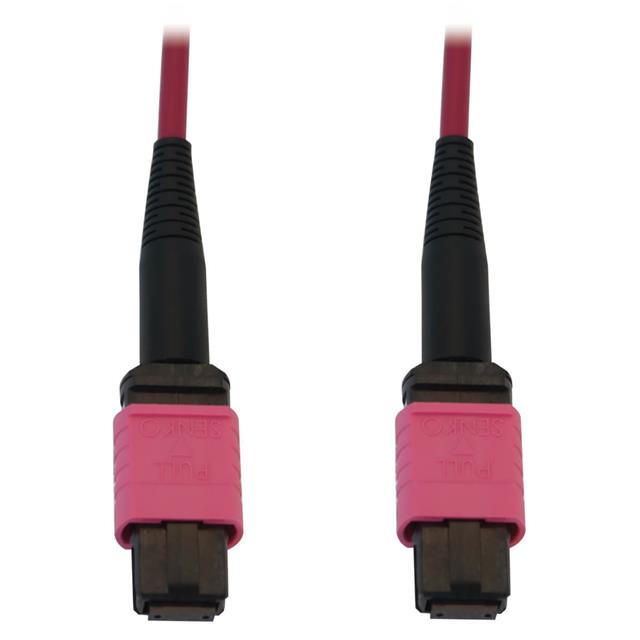

Cable Fiber Optic MTP To MTP 50/125 49.2' (15.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | N845B-15M-12-MG |
|---|---|
| 1st Connector | MTP |
| 2nd Connector | MTP |
| Bend Radius | 10 mm |
| Color - Cable | Magenta |
| Color - Connectors | Magenta, Black |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 50 µm |
| Insertion Loss | 0.35 dB |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Length - Overall | 49.2 ft |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Type | OM4, Multimode |
