LD30EPBR60BPM5IO
ActiveCarlo Gavazzi Inc.

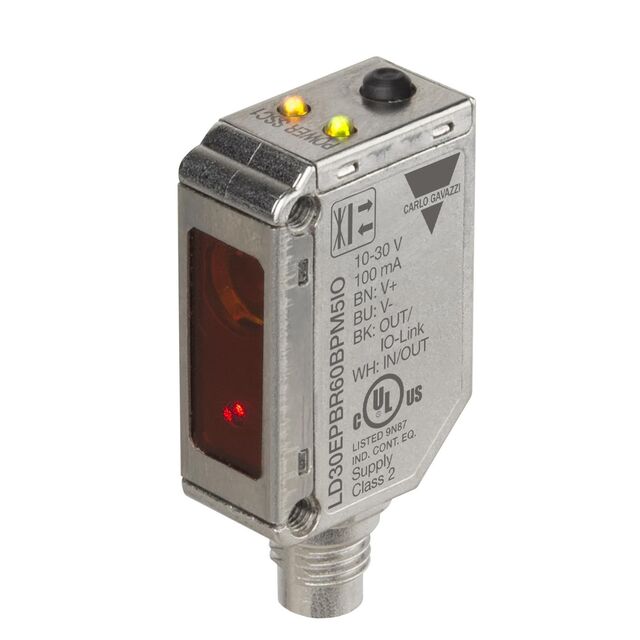

LASER BGS RED 600M SS TOP BUTTON
LD30EPBR60BPM5IO
ActiveCarlo Gavazzi Inc.
LASER BGS RED 600M SS TOP BUTTON
Description
General part information
LD30EPBR60BPM5IO
Background, Foreground Suppression Optical Sensor 23.622" (600mm) Push-Pull, NPN/PNP, NC/NO
Technical Specifications
Parameters and characteristics for this part
| Specification | LD30EPBR60BPM5IO |
|---|---|
| Adjustment Type | Teaching Method |
| Connection Method | M8, Connector |
| Ingress Protection | IP67 |
| Light Source | Red Laser Diode |
| Light Source Wavelength (Red Laser Diode) | 650 nm |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | Push-Pull, NO, PNP, NPN, NC |
| Response Time | 2 ms |
| Sensing Distance | 23.622 " |
| Sensing Method | Foreground Suppression, Background |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
