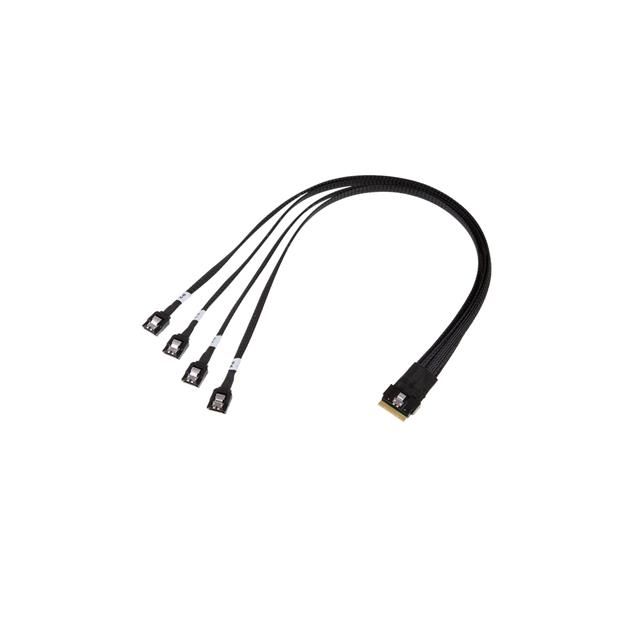

Specification	PT-SAS-SL8-4S-750

Cable Connectors	SlimSAS SFF-8654 8i, SATA
Cable Connectors Count	4 pcs
Cable Type	Flat
Color	Black
Connector Type	Plug to Receptacle
Fastening Type	Latch Lock
Features	8Gbps PCI-e Gen3, SlimSAS SFF-8654. Raid friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745
Frequency - Max	8 GHz
Gender	Male to Female
Length	2.46 ft
Number of Positions	74, 7 (4)
Shielding	Shielded
Usage	Internal
Wire Gauge	30 AWG

PT-SAS-SL8 Series

Part	Color	Shielding	Number of Positions	Features	Connector Type	Connector Pin Count	Usage	Gender	Gender Count	Cable Connectors	Cable Connectors Count	Cable Type	Fastening Type	Length	Number of Positions	Frequency - Max	Number of Positions (Details)	Wire Gauge
PT Speed PT-SAS-SL8-8S-025	Black	Shielded	7 (8) 74	8Gbps PCI-e Gen3 SlimSAS SFF-8654. Raid friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745	Plug to Receptacle	8 pos	Internal	Male to Female	8	SATA SlimSAS SFF-8654 8i	8 pcs	Round	Latch Lock	0.82 ft
PT Speed PT-SAS-SL8-8S-100	Black	Shielded	7 (8) 74	8Gbps PCI-e Gen3 SlimSAS SFF-8654. Raid friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745	Plug to Receptacle	8 pos	Internal	Male to Female	8	SATA SlimSAS SFF-8654 8i	8 pcs	Round	Latch Lock	3.28 ft
PT Speed PT-SAS-SL8-43X2-500	Black	Shielded	36 (2) 74	8Gbps PCI-e Gen3 SlimSAS SFF-8654. Raid friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745	Plug to Plug		Internal	Male to Male		miniSAS HD 4i SlimSAS SFF-8654 8i		Flat	Latch Lock	1.64 ft
PT Speed PT-SAS-SL8-RA-1000	Black	Shielded		12Gbps SAS 3.0 SlimSAS SFF-8654. Raid friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745	Plug to Plug		Internal	Male to Male		SlimSAS SFF-8654 8i		Flat	Latch Lock	3.28 ft	74
PT Speed PT-SAS-SL8-LSE-LP-050	Black	Shielded		12Gbps SAS 3.0 SlimSAS SFF-8654. Raid friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745	Plug to Plug		Internal	Male to Male		SlimSAS SFF-8654 8i		Flat	Latch Lock	1.64 ft	74
PT Speed PT-SAS-SL8-SL4X2-025	Black	Shielded	38 (2) 74	12Gbps SAS 3.0 SlimSAS SFF-8654. Raid friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745	Plug to Plug		Internal	Male to Male		SlimSAS SFF-8654 4i SlimSAS SFF-8654 8i	2 pcs	Flat	Latch Lock	0.82 ft	38 74	16 GHz	2	30 AWG
PT Speed PT-SAS-SL8-8S-075	Black	Shielded	7 (8) 74	8Gbps PCI-e Gen3 SlimSAS SFF-8654. Raid friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745	Plug to Receptacle	8 pos	Internal	Male to Female	8	SATA SlimSAS SFF-8654 8i	8 pcs	Round	Latch Lock	2.46 ft		8 GHz		30 AWG
PT Speed PT-SAS-SL8-RA-750	Black	Shielded		12Gbps SAS 3.0 SlimSAS SFF-8654. Raid friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745	Plug to Plug		Internal	Male to Male		SlimSAS SFF-8654 8i		Flat	Latch Lock	2.46 ft	74
PT Speed PT-SAS-SL8-SL4X2-025	Black	Shielded	38 (2) 74	12Gbps SAS 3.0 SlimSAS SFF-8654. Raid friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745	Plug to Plug		Internal	Male to Male		SlimSAS SFF-8654 4i SlimSAS SFF-8654 8i	2 pcs	Flat	Latch Lock	0.82 ft	38 74		2
PT Speed PT-SAS-SL8-SL4X2-750	Black	Shielded	38 (2) 74	12Gbps SAS 3.0 SlimSAS SFF-8654. Raid friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745	Plug to Plug		Internal	Male to Male		SlimSAS SFF-8654 4i SlimSAS SFF-8654 8i	2 pcs	Flat	Latch Lock	2.46 ft	38 74	16 GHz	2	30 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
