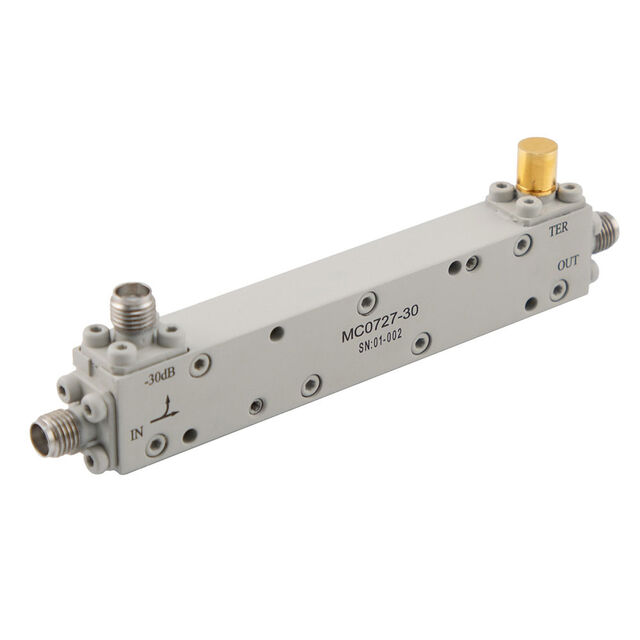

MC0727-30
ActiveFairview Microwave
COUPLER 0.7-2.7 GHZ 50 W SMA
MC0727-30
ActiveFairview Microwave
COUPLER 0.7-2.7 GHZ 50 W SMA
Description
General part information
MC0727-30
RF Directional Coupler General Purpose 700MHz ~ 2.7GHz 30 ± 1dB Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | MC0727-30 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 30 dB |
| Coupling Factor Tolerance | 1 dB |
| Frequency (Max) | 2.7 GHz |
| Frequency (Min) | 700 MHz |
| Insertion Loss | 0.4 dB |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
