2-84952-5
ActiveTE Connectivity AMP Connectors

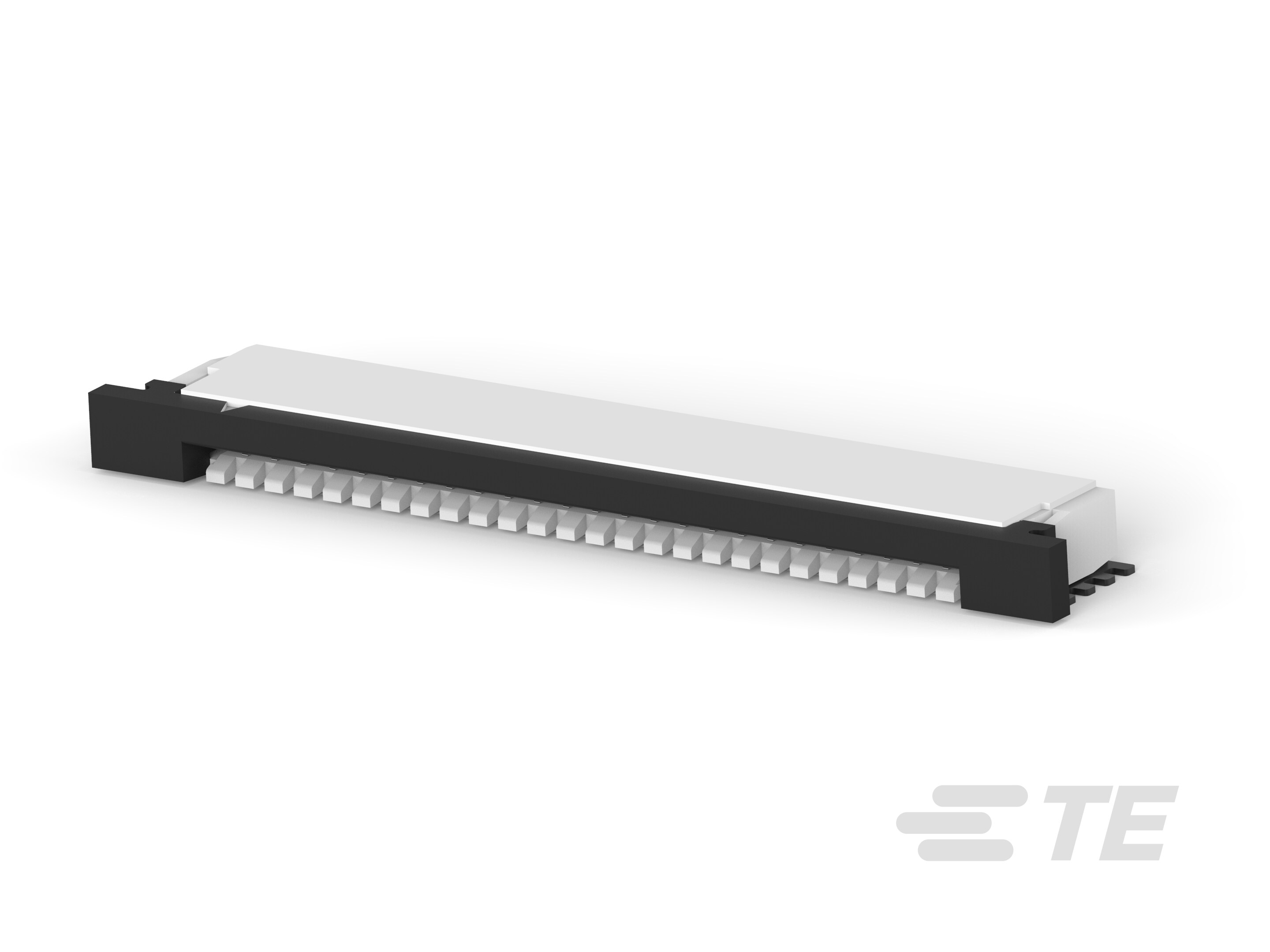

1MM FPC HORZ.BOTTOM CONT.ASSY 25P
2-84952-5
ActiveTE Connectivity AMP Connectors
1MM FPC HORZ.BOTTOM CONT.ASSY 25P
Description
General part information
2-84952-5
1 mm [.039 in] Centerline, Right Angle, Surface Mount, Stuffer Actuator, Tin (Sn), 25 Position, FPC Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-84952-5 |
|---|---|
| Actuator Material | Nylon, Glass Filled, Polyamide (PA) |
| Cable End Type | Straight |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC |
| Height Above Board | 0.101 in |
| Housing Material | Glass Filled, LCP, Liquid Crystal Polymer |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 25 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.039 in |
| Termination | Solder |
| Voltage Rating | 200 VDC |
