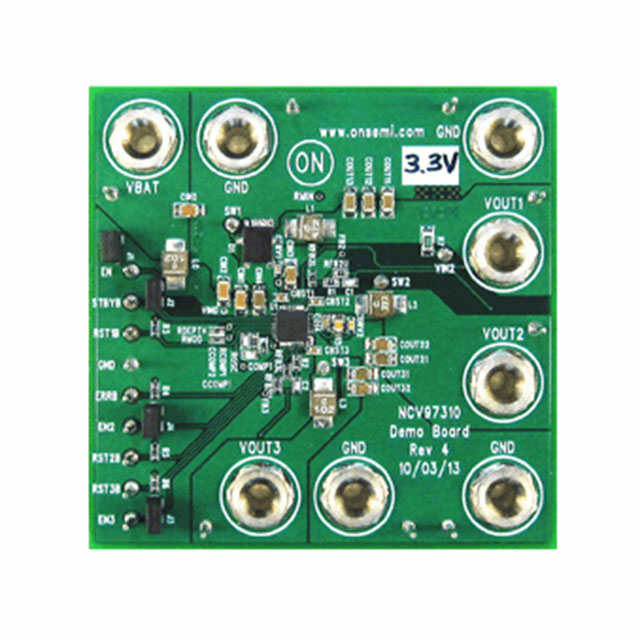

NCV97310MW33GEVB
ObsoleteON Semiconductor
EVALUATION BOARD, POWER MANAGEMENT UNIT, 2MHZ FIXED FREQUENCY REGULATOR, 4.1-45V SUPPLY
NCV97310MW33GEVB
ObsoleteON Semiconductor
EVALUATION BOARD, POWER MANAGEMENT UNIT, 2MHZ FIXED FREQUENCY REGULATOR, 4.1-45V SUPPLY
Description
General part information
NCV97310MW33GEVB
NCV97310 - DC/DC, Step Down with LDO 3, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | NCV97310MW33GEVB |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output (Value 1) | 3 A |
| Current - Output (Value 2) | 1.5 A |
| Current - Output (Value 3) | 1.5 A |
| Frequency - Switching | 2 MHz |
| Main Purpose | Step Down with LDO, DC/DC |
| Non-Isolated Output Count | 3 |
| Output Type | Non-Isolated |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Total Output Count | 3 |
| Utilized IC / Part | NCV97310 |
| Voltage - Input (Maximum) | 36 V |
| Voltage - Input (Minimum) | 6 V |
| Voltage - Output | 1.8 V, 3.3 V, 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
