CSG-16G005
ActiveMcGill Microwave Systems
CABLE GLAND 5.5-7.6MM PG16
CSG-16G005
ActiveMcGill Microwave Systems
CABLE GLAND 5.5-7.6MM PG16
Description
General part information
CSG-16G005

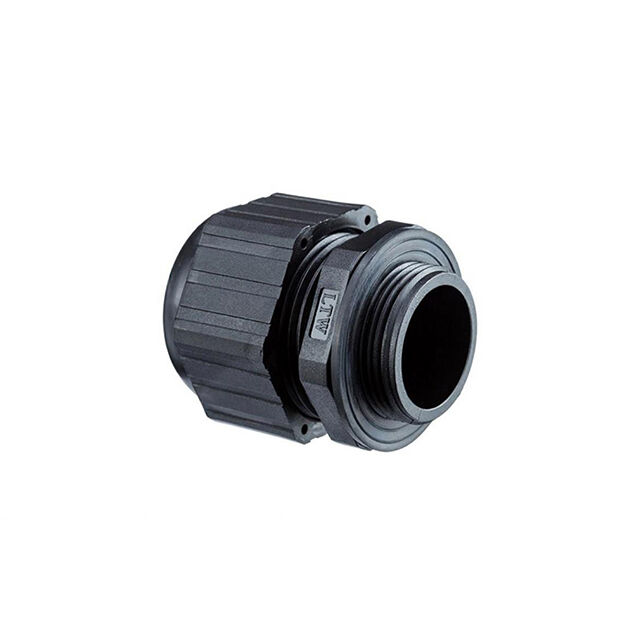

Cable Gland Polyamide (PA), Nylon PG16 Black
Technical Specifications
Parameters and characteristics for this part
| Specification | CSG-16G005 |
|---|---|
| Color | Black |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Material | Nylon, Polyamide (PA) |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -20 °C |
| Outside Cable Diameter (Max) | 0.299 in |
| Outside Cable Diameter (Min) | 0.217 in |
| Thread Size | PG16 |
| Type | Cable Gland |
