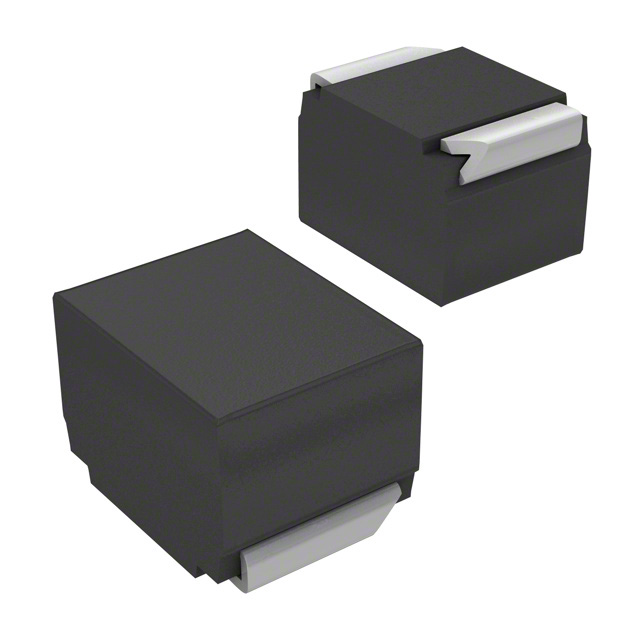

B82422T3560J000
ActiveEPCOS - TDK Electronics
FIXED IND 56NH 450MA 210MOHM SMD
B82422T3560J000
ActiveEPCOS - TDK Electronics
FIXED IND 56NH 450MA 210MOHM SMD
Description
General part information
B82422T3560J000
56 nH Unshielded Drum Core, Wirewound Inductor 450 mA 210mOhm Max 2-SMD, J-Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | B82422T3560J000 |
|---|---|
| Current Rating | 0.45 A |
| DC Resistance (DCR) (Max) | 210 mOhm |
| Frequency - Self Resonant | 1.1 GHz |
| Height - Seated (Max) | 0.083 in |
| Inductance | 56 nH |
| Inductance Frequency - Test | 100 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2-SMD, J-Lead |
| Package Length | 3.2 mm |
| Package Name | 3225 Metric, 1210 |
| Package Width | 2.5 mm |
| Q | 26 |
| Ratings | AEC-Q200 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Tolerance | 5 % |
| Type | Drum Core, Wirewound |
