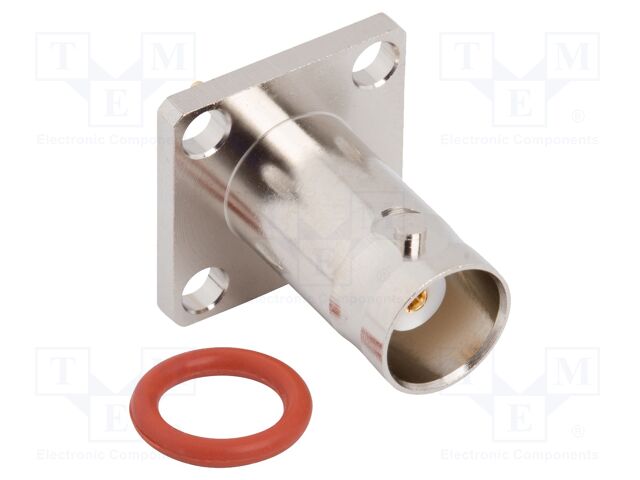

Specification	112639

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Features	Extended Insulation
Frequency - Max	4 GHz
Housing Color	Silver
Impedance	50 Ohm
Insertion Loss	0.2 dB
Mating Cycles	500 cycles
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Ports	1
Shield Termination	Solder
Voltage Rating	500 V

1126 Series

Part	Frequency - Max	Cable Group	Fastening Type	Connector Type	Mounting Type	Center Contact Material	Shield Termination	Number of Ports	Contact Termination	Impedance	Connector Style	Housing Color	Center Contact Plating	Body Finish	Voltage Rating	Insertion Loss	Mating Cycles	Dielectric Material	Includes Total Count	Includes	Body Material	Features	Mounting Feature	Ingress Protection	Operating Temperature (Min)	Operating Temperature (Max)
McGill Microwave Systems 112605	4 GHz	Belden 9258 LMR-240 RG-8X	Bayonet Lock	Female Socket Jack	Free Hanging (In-Line)	Phosphor Bronze	Crimp	1	Crimp	50 Ohm	BNC	Silver	Gold	Nickel	500 V	0.2 dB	500 cycles	Polytetrafluoroethylene (PTFE)	3 pcs	Connector Contact Ferrule	Brass
McGill Microwave Systems 112661	4 GHz		Bayonet Lock	Female Socket Jack	Panel Mount Right Angle Through Hole	Beryllium Copper	Solder	2	Solder	75 Ohm	BNC	Black Silver	Gold	Nickel	500 V		500 cycles	Polypropylene (PP)			Zinc Die Cast	Board Lock	Bulkhead
McGill Microwave Systems 112631	4 GHz	178A 178B 196 196A M17/93-RG178 RG-178	Bayonet Lock	Female Socket Jack	Free Hanging (In-Line)	Phosphor Bronze	Crimp	1	Crimp	50 Ohm	BNC	Silver	Gold	Nickel	500 V	0.2 dB	500 cycles	Polytetrafluoroethylene (PTFE)	3 pcs	Connector Contact Ferrule	Brass
McGill Microwave Systems 112657	4 GHz	9292 Belden 8213 RG-11	Bayonet Lock	Female Socket Jack	Free Hanging (In-Line)		Clamp	1		75 Ohm	BNC	Silver		Nickel	500 V		500 cycles	Polytetrafluoroethylene (PTFE)	6 pcs	Braid Clamp Clamp Connector Contact Gasket Washer	Brass			Weatherproof
McGill Microwave Systems 112603	4 GHz	9913 9914 Belden 8214 LMR-400	Bayonet Lock	Female Socket Jack	Free Hanging (In-Line)	Phosphor Bronze	Crimp	1	Crimp	50 Ohm	BNC	Silver	Gold	Nickel	500 V	0.2 dB	500 cycles	Polytetrafluoroethylene (PTFE)	3 pcs	Connector Contact Ferrule	Brass
McGill Microwave Systems 112635	4 GHz	188 316 Double Braid M17/152-RD316 RG-179	Bayonet Lock	Female Socket Jack	Panel Mount	Phosphor Bronze	Crimp	1	Crimp	50 Ohm	BNC	Silver	Gold	Nickel	500 V	0.2 dB	500 cycles	Polytetrafluoroethylene (PTFE)	5 pcs	Connector Contact Ferrule Lockwasher Nut	Brass		Bulkhead Rear Side Nut
McGill Microwave Systems 112659	4 GHz		Bayonet Lock	Female Socket Jack	Right Angle Through Hole	Phosphor Bronze	Solder	1	Solder	50 Ohm	BNC	Silver	Gold	Nickel	500 V	0.2 dB	500 cycles	Polytetrafluoroethylene (PTFE)			Brass				-65 °C	165 °C
McGill Microwave Systems 112607	4 GHz		Bayonet Lock	Female Socket Jack	Free Hanging (In-Line)	Phosphor Bronze	Solder	1	Solder	50 Ohm	BNC	Silver	Gold	Nickel	500 V	0.2 dB	500 cycles	Polytetrafluoroethylene (PTFE)			Brass				-65 °C	165 °C
McGill Microwave Systems 112653	4 GHz		Bayonet Lock	Male Pin Plug	Panel Mount	Brass	Solder	1	Solder Cup	50 Ohm	BNC	Silver	Gold	Nickel	500 V	0.2 dB	500 cycles	Polytetrafluoroethylene (PTFE)			Brass		Flange
McGill Microwave Systems 112601	4 GHz	Belden 9258 LMR-240 RG-8X	Bayonet Lock	Male Pin Plug	Free Hanging (In-Line) Right Angle	Brass	Crimp	1	Solder	50 Ohm	BNC	Silver	Gold	Nickel	500 V	0.2 dB	500 cycles	Polyoxymethylene (POM) Acetal	3 pcs	Connector End Cap Ferrule	Brass
