BC6-Q308-03
ActiveTE Connectivity AMP Connectors

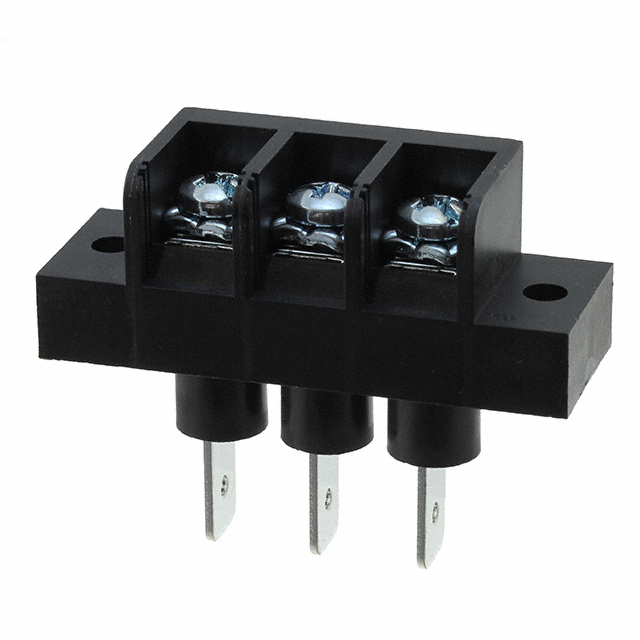

CONN BARRIER STRIP 3CIRC 0.375"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BC6-Q308-03
ActiveTE Connectivity AMP Connectors
CONN BARRIER STRIP 3CIRC 0.375"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BC6-Q308-03 |
|---|---|
| Barrier Type | 3 Wall (Tri) |
| Bottom Termination | Quick Connect, Insulated |
| Bottom Termination [custom] | 0.25 " |
| Color | Black |
| Current Rating (Amps) | 20 A |
| Features | Flange |
| Material - Insulation | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel, Chassis |
| Number of Circuits | 3 |
| Number of Rows | 1 |
| Number of Wire Entries | 3 |
| Operating Temperature | 105 C |
| Pitch [x] | 9.53 mm |
| Pitch [x] | 0.375 in |
| Terminal Block Type | Barrier Block |
| Terminal Screw Finish | Zinc, Clear Chromate |
| Terminal Screw Material | Steel |
| Top Termination | Screws with Captive Plate |
| Voltage Rating | 300 VDC |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 750 | $ 3.93 | |
BC6-Q Series
CONN BARRIER STRIP 3CIRC 0.375"
| Part | Features | Wire Gauge [Min] | Wire Gauge [Max] | Terminal Screw Finish | Material Flammability Rating | Pitch [x] | Pitch [x] | Voltage Rating | Terminal Screw Material | Operating Temperature | Current Rating (Amps) | Barrier Type | Bottom Termination | Bottom Termination [custom] | Terminal Block Type | Number of Wire Entries | Number of Circuits | Color | Mounting Type | Number of Rows | Material - Insulation | Top Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors BC6-Q308-03 | Flange | 12 AWG | 22 AWG | Clear Chromate, Zinc | UL94 V-0 | 9.53 mm | 0.375 in | 300 VDC | Steel | 105 C | 20 A | 3 Wall (Tri) | Insulated, Quick Connect | 0.25 " | Barrier Block | 3 | 3 | Black | Chassis, Panel | 1 | Thermoplastic | Screws with Captive Plate |
Description
General part information
BC6-Q Series
3 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate
