28A2738-0A2
ActiveLaird Technologies EMI

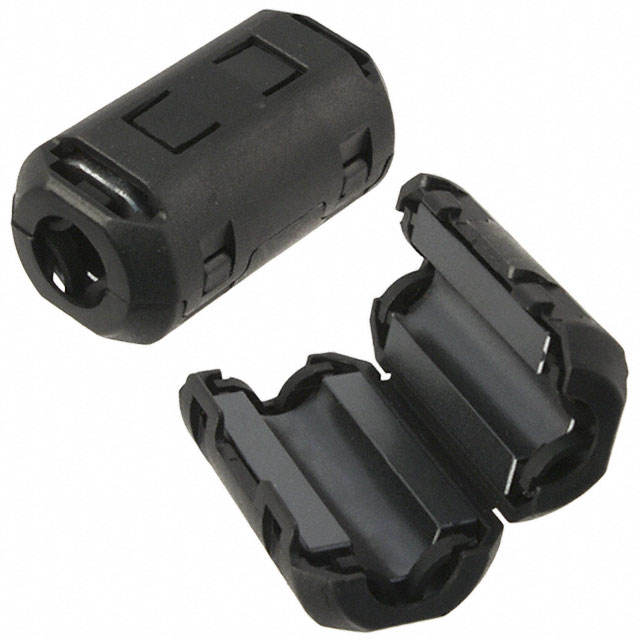

FERRITE CORE 233 OHM HINGED 9MM
28A2738-0A2
ActiveLaird Technologies EMI
FERRITE CORE 233 OHM HINGED 9MM
Description
General part information
28A2738-0A2
Hinged (Snap On) Free Hanging Ferrite Core 233Ohm @ 100MHz ID 0.354" Dia (9.00mm) OD 0.709" W x 0.776" H (18.00mm x 19.70mm) Length 1.382" (35.10mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 28A2738-0A2 |
|---|---|
| Design | Hinged (Snap On) |
| Impedance | 233 Ohm |
| Inner Dimension (Diameter) | 0.354 in |
| Length | 1.382 in |
| Material | 28 |
| Material Temperature Rating | 28 °C |
| Mounting Type | Free Hanging |
| Outer Dimension Height | 0.776 in |
| Outer Dimension Width | 0.709 in |
| Type | Round |
