MBB0207CC3831FC100
ActiveVishay Dale
MBB/SMA 0207-50 1% VG06 C1 3K83
MBB0207CC3831FC100
ActiveVishay Dale
MBB/SMA 0207-50 1% VG06 C1 3K83
Description
General part information
MBB0207CC3831FC100

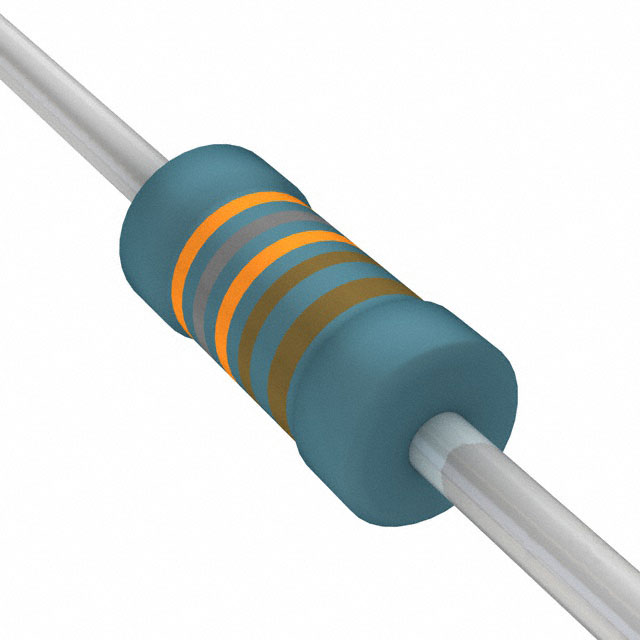

3.83 kOhms ±1% 0.6W Through Hole Resistor Axial Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MBB0207CC3831FC100 |
|---|---|
| Composition | Metal Film |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 600 mW |
| Resistance | 3.83 kOhm |
| Size / Dimension Diameter | 0.098 in |
| Size / Dimension Length | 0.256 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
