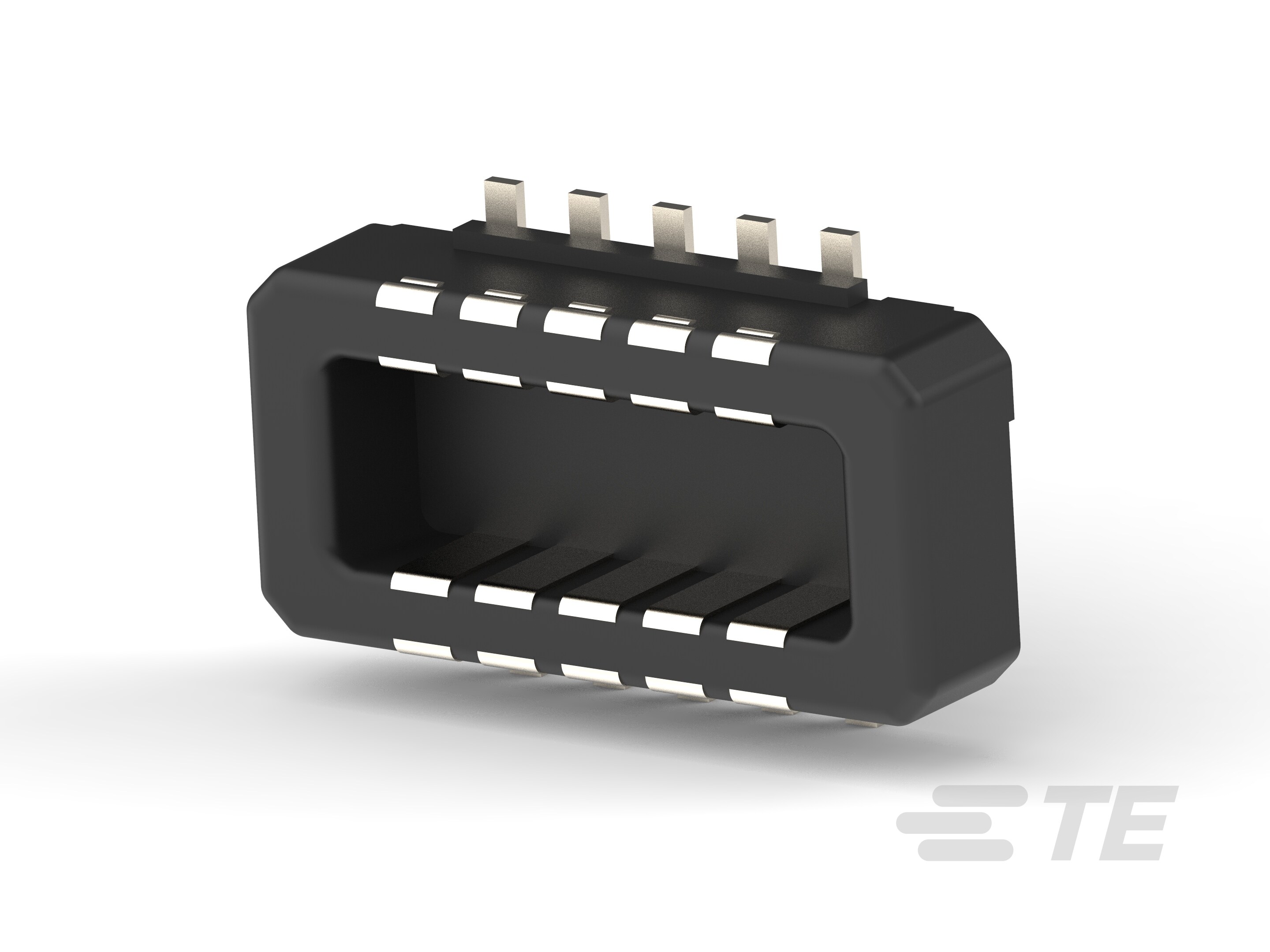

0.4 STACKING CONN H0.98 PLUG ASSEMBLY-1-2201196-0

1-2201196-0

Active
TE Connectivity AMP Connectors

0.4 STACKING CONN H0.98 PLUG ASSEMBLY ROHS COMPLIANT: YES

Find alt
0.4 STACKING CONN H0.98 PLUG ASSEMBLY-1-2201196-0

1-2201196-0

Active
TE Connectivity AMP Connectors

0.4 STACKING CONN H0.98 PLUG ASSEMBLY ROHS COMPLIANT: YES

Find alt

Description

General part information

1-2201196-0

0.4 STACKING CONN H0.98 PLUG ASSEMBLY ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification1-2201196-0
Connector TypePlug, Outer Shroud Contacts
Contact FinishGold
Contact Finish Thickness4 µin
FeaturesSolder Retention
Height Above Board0.03 in
Mated Stacking Height0.98 mm
Mounting TypeSurface Mount
Number of Positions10
Number of Rows2
Pitch0.016 in
