2834113-3
ActiveTE Connectivity AMP Connectors
5.0MM TOP ENTRY MSC 4P_GY
2834113-3
ActiveTE Connectivity AMP Connectors
5.0MM TOP ENTRY MSC 4P_GY
Description
General part information
2834113-3

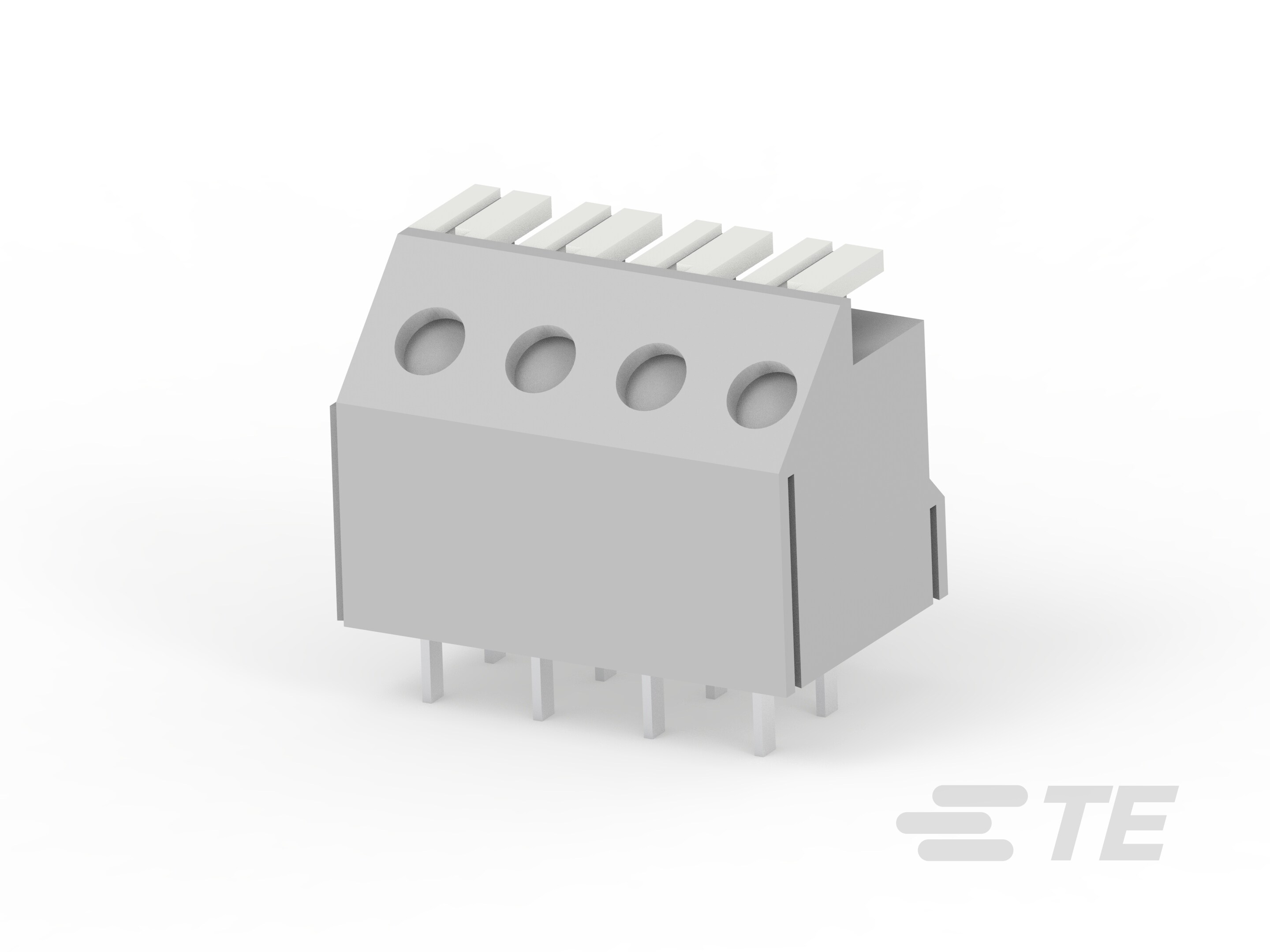

4 Position PCB Terminal Block, Receptacle, Wire-to-Board, 5 mm [.196 in] Centerline, 1 Row, 45° Wire Entry Angle, 22 – 14 AWG, .34 – 2.5 mm² Wire
Technical Specifications
Parameters and characteristics for this part
| Specification | 2834113-3 |
|---|---|
| Color | Gray |
| Current | 8 A |
| Features | Interlocking (Side) |
| Mating Orientation (Angle) | 45 ° |
| Mating Orientation (Angle) (Alternate) | 135 ° |
| Mating Orientation (Description) | Angle with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.197 in |
| Positions Per Level | 4 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
| Wire Termination | Spring Cage, Screwless, Tension Clamp |
