Description
General part information

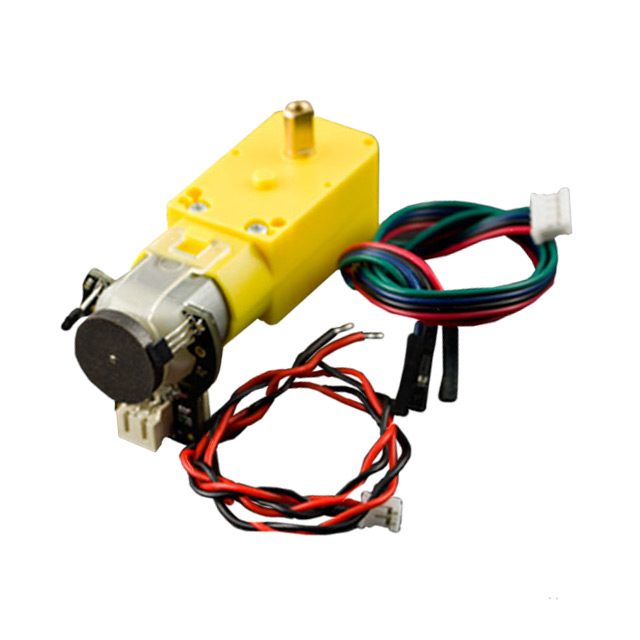

FIT0450
DC Motor Gearmotor 160 RPM Incremental 6VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | FIT0450 |
|---|---|
| Encoder Type | Incremental |
| Function | Gearmotor |
| Gear Reduction Ratio | 120 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| RPM | 160 RPM |
| Termination Style | Wire Leads with Connector |
| Torque - Max Momentary (mNm) | 199.2 mNm |
| Torque - Max Momentary (oz-in) | 28.22 oz-in |
| Torque - Rated (mNm) | 49.81 mNm |
| Torque - Rated (oz-in) | 7.05 oz-in |
| Type | DC Motor |
| Voltage - Rated | 6 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
