1-2324584-4
ActiveTE Connectivity AMP Connectors

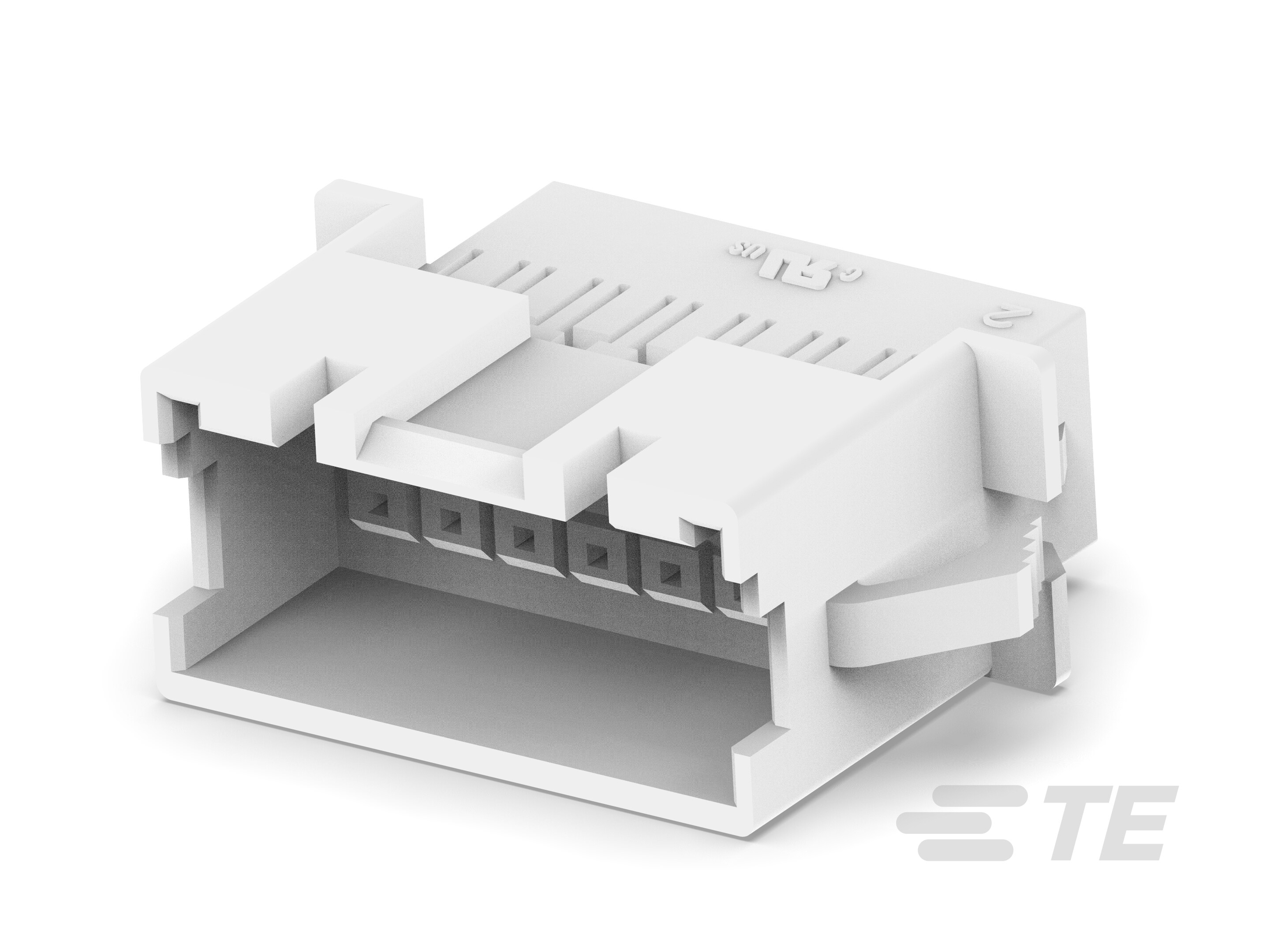

HSG,REC,PANEL MOUNT,DUALROW,EP2.5
1-2324584-4
ActiveTE Connectivity AMP Connectors
HSG,REC,PANEL MOUNT,DUALROW,EP2.5
Description
General part information
1-2324584-4
Housing, Receptacle, Wire-to-Wire, 14 Position, 2.5 mm [.098 in] Centerline, Crimp, 2 Row, White, Wire & Cable, Power & Signal, Economy Power 2.5
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2324584-4 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Pitch | 0.098 in |
| Row Spacing | 0.098 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
