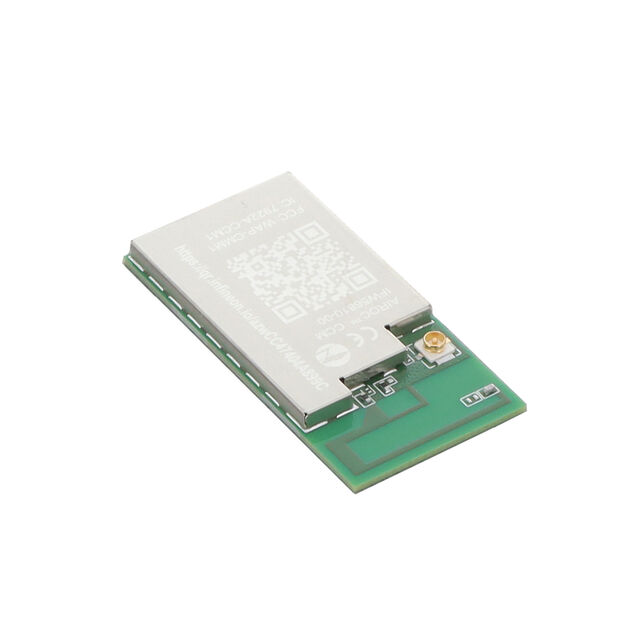

IFW56810-00
Bluetooth, WiFi 802.11b/g/n, Bluetooth v5.2 Transceiver Module 2.4GHz Integrated, Trace Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | IFW56810-00 |
|---|---|
| Antenna Type | Integrated, Trace |
| Data Rate | 96 Mbps |
| Frequency | 2.4 GHz |
| Modulation | QPSK, 64-QAM, DBPSK, DSSS, 16-QAM, OFDM, DQPSK, GFSK, CCK, BPSK |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | 145-BELGA Module |
| Power - Output | 19 dBm |
| Protocol | Bluetooth v5.2, 802.11n, 802.11b, 802.11g |
| RF Family/Standard | WiFi, Bluetooth |
| Sensitivity | -97 dBm |
| Serial Interfaces | UART, GPIO |
| Utilized IC / Part | CYW43439 + PSoC 64 |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 1.7 V |
