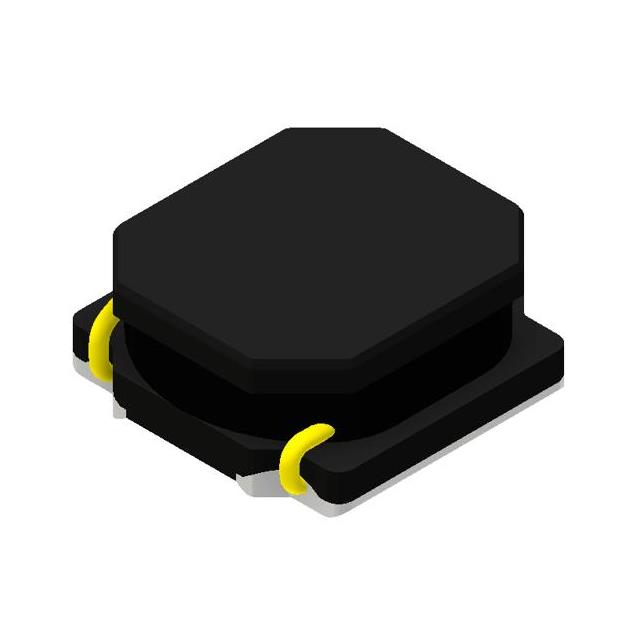

HPC 4018BMV-6R8M

Active

TAI-TECH Advanced Electronics Co., Ltd.

FIXED IND 6.8UH 1.45A 0.098OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HPC 4018BMV-6R8M

Active

TAI-TECH Advanced Electronics Co., Ltd.

FIXED IND 6.8UH 1.45A 0.098OHM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HPC 4018BMV-6R8M	HPC 4018BMV Series

Current - Saturation (Isat)	1.6 A	1.3 - 900 A
Current Rating (Amps)	1.45 A	0.28 - 3.2 A
DC Resistance (DCR)	98 mOhm	1.45 - 650 mOhm
Height - Seated (Max) [Max]	0.071 "	0.071 "
Height - Seated (Max) [Max]	1.8 mm	1.8 mm
Inductance	6.8 µH	1 - 100 ÁH
Inductance Frequency - Test	100 kHz	100 kHz
Material - Core	Ferrite	Ferrite
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1616 (4040 Metric)	1616 (4040 Metric)
Ratings	AEC-Q200	AEC-Q200
Shielding	Shielded	Shielded
Size / Dimension [x]	4 mm	4 mm
Size / Dimension [x]	0.157 "	0.157 "
Size / Dimension [y]	0.157 in	0.157 in
Size / Dimension [y]	4 mm	4 mm
Supplier Device Package	4018	4018
Tolerance	20 %	20 %
Type	Wirewound	Wirewound

HPC 4018BMV Series

FIXED IND 4.7UH 1.7A 0.07OHM SMD

Part	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Shielding	Package / Case	Current - Saturation (Isat)	Mounting Type	Inductance Frequency - Test	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Material - Core	DC Resistance (DCR)	Type	Current Rating (Amps)	Inductance	Operating Temperature [Min]	Operating Temperature [Max]
TAI-TECH Advanced Electronics Co., Ltd. HPC 4018BMV-4R7M	20 %	0.157 in	4 mm	4 mm	0.157 "	Shielded	1616 (4040 Metric)	2 A	Surface Mount	100 kHz	AEC-Q200	0.071 "	1.8 mm	4018	Ferrite	70 mOhm	Wirewound	1.7 A	4.7 ÁH	-55 °C	125 °C
TAI-TECH Advanced Electronics Co., Ltd. HPC 4018BMV-100M	20 %	0.157 in	4 mm	4 mm	0.157 "	Shielded	1616 (4040 Metric)	1.3 A	Surface Mount	100 kHz	AEC-Q200	0.071 "	1.8 mm	4018	Ferrite	150 mOhm	Wirewound	1.2 A	10 µH	-55 °C	125 °C
TAI-TECH Advanced Electronics Co., Ltd. HPC 4018BMV-470M	20 %	0.157 in	4 mm	4 mm	0.157 "	Shielded	1616 (4040 Metric)	600 mA	Surface Mount	100 kHz	AEC-Q200	0.071 "	1.8 mm	4018	Ferrite	650 mOhm	Wirewound	0.44 A	47 µH	-55 °C	125 °C
TAI-TECH Advanced Electronics Co., Ltd. HPC 4018BMV-330M	20 %	0.157 in	4 mm	4 mm	0.157 "	Shielded	1616 (4040 Metric)	700 mA	Surface Mount	100 kHz	AEC-Q200	0.071 "	1.8 mm	4018	Ferrite	460 mOhm	Wirewound	0.55 A	33 µH	-55 °C	125 °C
TAI-TECH Advanced Electronics Co., Ltd. HPC 4018BMV-220M	20 %	0.157 in	4 mm	4 mm	0.157 "	Shielded	1616 (4040 Metric)	900 mA	Surface Mount	100 kHz	AEC-Q200	0.071 "	1.8 mm	4018	Ferrite	290 mOhm	Wirewound	0.72 A	22 µH	-55 °C	125 °C
TAI-TECH Advanced Electronics Co., Ltd. HPC 4018BMV-2R2M	20 %	0.157 in	4 mm	4 mm	0.157 "	Shielded	1616 (4040 Metric)	3 A	Surface Mount	100 kHz	AEC-Q200	0.071 "	1.8 mm	4018	Ferrite	42 mOhm	Wirewound	2.2 A	2.2 µH	-55 °C	125 °C
TAI-TECH Advanced Electronics Co., Ltd. HPC 4018BMV-1R0M	20 %	0.157 in	4 mm	4 mm	0.157 "	Shielded	1616 (4040 Metric)	4 A	Surface Mount	100 kHz	AEC-Q200	0.071 "	1.8 mm	4018	Ferrite	27 mOhm	Wirewound	3.2 A	1 µH	-55 °C	125 °C
TAI-TECH Advanced Electronics Co., Ltd. HPC 4018BMV-6R8M	20 %	0.157 in	4 mm	4 mm	0.157 "	Shielded	1616 (4040 Metric)	1.6 A	Surface Mount	100 kHz	AEC-Q200	0.071 "	1.8 mm	4018	Ferrite	98 mOhm	Wirewound	1.45 A	6.8 µH	-55 °C	125 °C
TAI-TECH Advanced Electronics Co., Ltd. HPC 4018BMV-101M	20 %	0.157 in	4 mm	4 mm	0.157 "	Shielded	1616 (4040 Metric)	420 mA	Surface Mount	100 kHz	AEC-Q200	0.071 "	1.8 mm	4018	Ferrite	1.45 Ohm	Wirewound	0.28 A	100 µH	-55 °C	125 °C
TAI-TECH Advanced Electronics Co., Ltd. HPC 4018BMV-3R3M	20 %	0.157 in	4 mm	4 mm	0.157 "	Shielded	1616 (4040 Metric)	2.3 A	Surface Mount	100 kHz	AEC-Q200	0.071 "	1.8 mm	4018	Ferrite	55 mOhm	Wirewound	2 A	3.3 µH	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.22
		10	$ 0.18
		25	$ 0.16
		50	$ 0.15
		100	$ 0.13
		250	$ 0.12
		500	$ 0.11
		1000	$ 0.09
	Digi-Reel®	1	$ 0.22
		10	$ 0.18
		25	$ 0.16
		50	$ 0.15
		100	$ 0.13
		250	$ 0.12
		500	$ 0.11
		1000	$ 0.09
	Tape & Reel (TR)	3500	$ 0.08
		7000	$ 0.08
		10500	$ 0.07
		17500	$ 0.07
		24500	$ 0.07
		35000	$ 0.06
		87500	$ 0.06

Description

General part information

HPC 4018BMV Series

6.8 µH Shielded Wirewound Inductor 1.45 A 98mOhm 1616 (4040 Metric)
