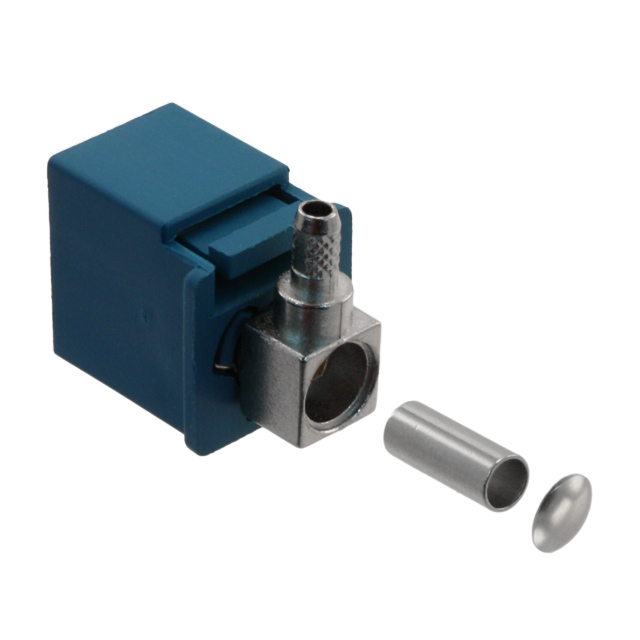

FA1-NZRJ-C01-3

Obsolete

AMPHENOL RF

CONN FAKRA JACK R/A 50OHM SOLDER

Search across all available documentation for this part.

Obsolete

AMPHENOL RF

CONN FAKRA JACK R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FA1-NZRJ-C01-3	FA1-NZRJ Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	SMB, Fakra	SMB, Fakra
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Latch Lock	Latch Lock
Features	Code Z	Code Z
Frequency - Max [Max]	6000 MHz	6000 MHz
Impedance	50 Ohms	50 Ohms
Includes	1 Connector, 1 Ferrule, 1 End Cap	1 Connector, 1 Ferrule, 1 End Cap
Insertion Loss	0.3 dB	0.3 dB
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Termination	Crimp	Crimp

CONN FAKRA JACK R/A 50OHM SOLDER

Part	Connector Style	Dielectric Material	Number of Ports	Connector Type	Includes	Frequency - Max [Max]	Cable Group	Shield Termination	Body Material	Center Contact Plating	Body Finish	Contact Termination	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Insertion Loss	Fastening Type	Mounting Type	Features	Center Contact Material
AMPHENOL RF FA1-NZRJ-C01-0	Fakra, SMB	Polytetrafluoroethylene (PTFE)	1	Female Socket, Jack	1 Connector, 1 End Cap, 1 Ferrule	6000 MHz	188, 188A, 316, LMR-100, M17/119-RG174, RG-174	Crimp	Brass	Gold	Nickel	Solder	50 Ohms	100 °C	-40 °C	0.3 dB	Latch Lock	Free Hanging (In-Line), Right Angle	Code Z	Beryllium Copper
AMPHENOL RF FA1-NZRJ-C01-3	Fakra, SMB	Polytetrafluoroethylene (PTFE)	1	Female Socket, Jack	1 Connector, 1 End Cap, 1 Ferrule	6000 MHz	188, 188A, 316, LMR-100, M17/119-RG174, RG-174	Crimp	Brass	Gold	Nickel	Solder	50 Ohms	100 °C	-40 °C	0.3 dB	Latch Lock	Free Hanging (In-Line), Right Angle	Code Z	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMB, Fakra Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
