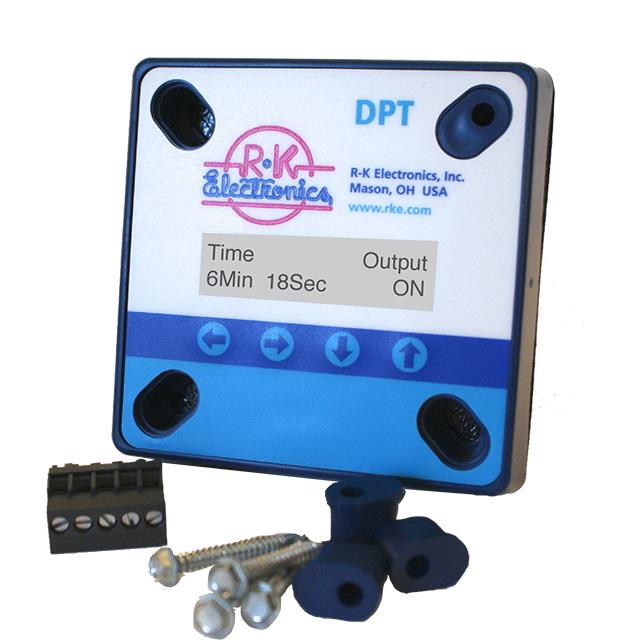

DPT-120A

Active

R-K Electronics, Inc.

RELAY TIME DELAY 60MIN 10A 120V

Search across all available documentation for this part.

Active

R-K Electronics, Inc.

RELAY TIME DELAY 60MIN 10A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	DPT-120A

Contact Rating @ Voltage	10 A
Contact Rating @ Voltage [Max]	277 VAC
Contact Rating @ Voltage [Min]	120 VAC
Delay Time [Max]	60 Min
Delay Time [Min]	1 Min
Function	Programmable (Multi-Function)
Relay Type	Mechanical Relay
Termination Style	Plug In
Timing Adjustment Method	Up/Down Digit Keys
Timing Initiate Method	Input Voltage
Voltage - Supply	120 VAC

RELAY TIME DELAY 60MIN 10A 120V

Part	Termination Style	Contact Rating @ Voltage	Contact Rating @ Voltage [Min]	Contact Rating @ Voltage [Max]	Timing Initiate Method	Timing Adjustment Method	Relay Type	Function	Delay Time [Min]	Delay Time [Max]	Voltage - Supply
R-K Electronics, Inc. DPT-120A	Plug In	10 A	120 VAC	277 VAC	Input Voltage	Up/Down Digit Keys	Mechanical Relay	Programmable (Multi-Function)	1 Min	60 Min	120 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Programmable (Multi-Function) Time Delay Relay SPDT (1 Form C) 1 Min ~ 60 Min Delay 10A @ 120/277VAC Panel Mount
