Description
General part information
DG909MF3-P

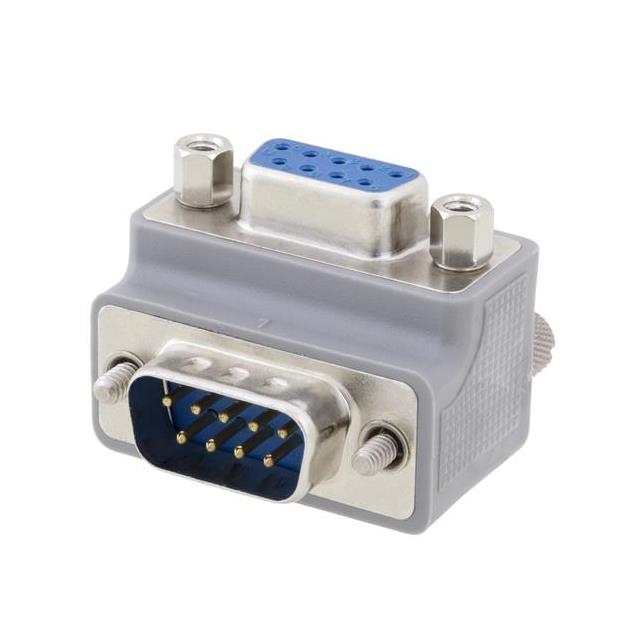

This low profile right angle D-Sub Adapter with Gold-plated contacts provides reliable connections with repeated mating cycles. Fully shielded and are over molded with gray PVC. Mating hardware is reversible allowing for use in virtually any application. Right angle adapters assist in connecting cables in tight spaces by allowing the cable to mate at a 90° angle. This reduces the backshell and cable bend distance required when mating cables.
Technical Specifications
Parameters and characteristics for this part
| Specification | DG909MF3-P |
|---|---|
| Connector Style | Connector Saver |
| Convert From (Adapter End) Pin Count | 9 |
| Convert From (Adapter End) Pin Gender | Male |
| Convert From (Adapter End) Type | D-Sub |
| Convert To (Adapter End) | Pin Female, D-Sub |
| Convert To (Adapter End) Pin Count | 9 pins |
| Features | Grounding Indents |
| Housing Color | Gray |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Rows | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -15 °C |
| Shielding | Shielded |
