ANT-5GW-MMG2-SMA-2

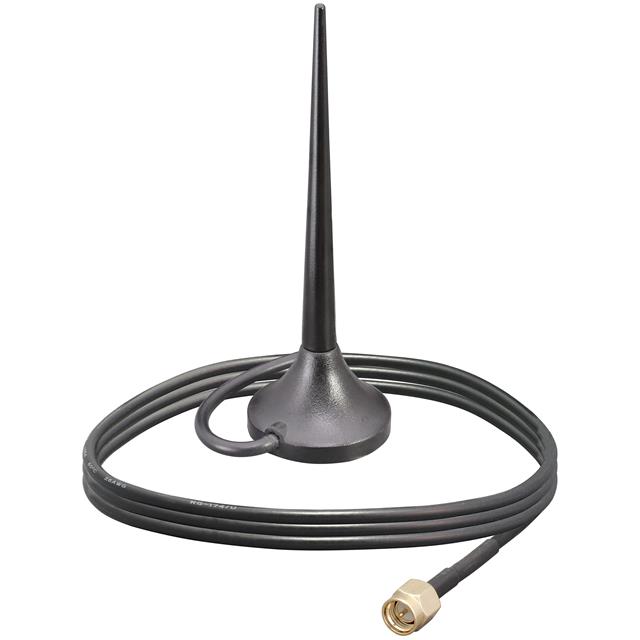

Terminal/Duck Antenna, Wide Band, 5G / Cellular / LTE, Remote Mount, Magnetic Mount, SMA, Omnidirectional, Single Port, 3 < 6 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-5GW-MMG2-SMA-2 |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | 2G, Cellular, 5G, ISM, LTE, 3G, 4G, NB-IoT |
| Features | Cable, 2m |
| Frequency (Center/Band) | 1.9475GHz, 657.5MHz, 1.175GHz, 4.7GHz, 2.495GHz, 750.5MHz, 842.5MHz, 1.593GHz, 3.75GHz |
| Frequency (Center/Band) - 1 | 657.5 MHz |
| Frequency (Center/Band) - 2 | 750.5 MHz |
| Frequency (Center/Band) - 3 | 842.5 MHz |
| Frequency (Center/Band) - 4 | 1.175 GHz |
| Frequency (Center/Band) - 5 | 1.593 GHz |
| Frequency (Center/Band) - 6 | 1.9475 GHz |
| Frequency (Center/Band) - 7 | 2.495 GHz |
| Frequency (Center/Band) - 8 | 3.75 GHz |
| Frequency (Center/Band) - 9 | 4.7 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 698 MHz |
| Frequency Range (Band 1) Minimum | 617 MHz |
| Frequency Range (Band 2) Maximum | 803 MHz |
| Frequency Range (Band 2) Minimum | 698 MHz |
| Frequency Range (Band 3) Maximum | 894 MHz |
| Frequency Range (Band 3) Minimum | 791 MHz |
| Frequency Range (Band 4) Maximum | 1.518 GHz |
| Frequency Range (Band 4) Minimum | 832 MHz |
| Frequency Range (Band 5) Maximum | 1.661 GHz |
| Frequency Range (Band 5) Minimum | 1.525 GHz |
| Frequency Range (Band 6) Maximum | 2.2 GHz |
| Frequency Range (Band 6) Minimum | 1.695 GHz |
| Frequency Range (Band 7) Maximum | 2.69 GHz |
| Frequency Range (Band 7) Minimum | 2.3 GHz |
| Frequency Range (Band 8) Maximum | 4.2 GHz |
| Frequency Range (Band 8) Minimum | 3.3 GHz |
| Frequency Range (Band 9) Maximum | 5 GHz |
| Frequency Range (Band 9) Minimum | 4.4 GHz |
| Gain | -0.5 dBi, 3.2 dBi, 4.7 dBi, 3.6 dBi, 3.4 dBi, 0.7 dBi, 2.4 dBi, 3.3 dBi |
| Height (Max) | 3.484 in |
| Mounting Type | Magnetic |
| Number of Bands | 9 |
| Power - Max | 10 VA |
| RF Family/Standard | Cellular, General ISM |
| Termination Type | SMA Male |
| VSWR | 2.3, 1.6, 2.8, 2.4, 5.7, 2.5, 3.1 |
